Commander Base, 3.7 K, 4WD
>>
Repair and Diagnosis (Single Page)
>>
Accessories & Equipment
>>
Communication Devices
>>
Electronic Control Modules - Electrical Diagnostics
>>
Electronic Control Modules - Electrical Diagnostics
>>
DTC Troubleshooting
>>
*Diagnostic Can C (-) Circuit Open
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

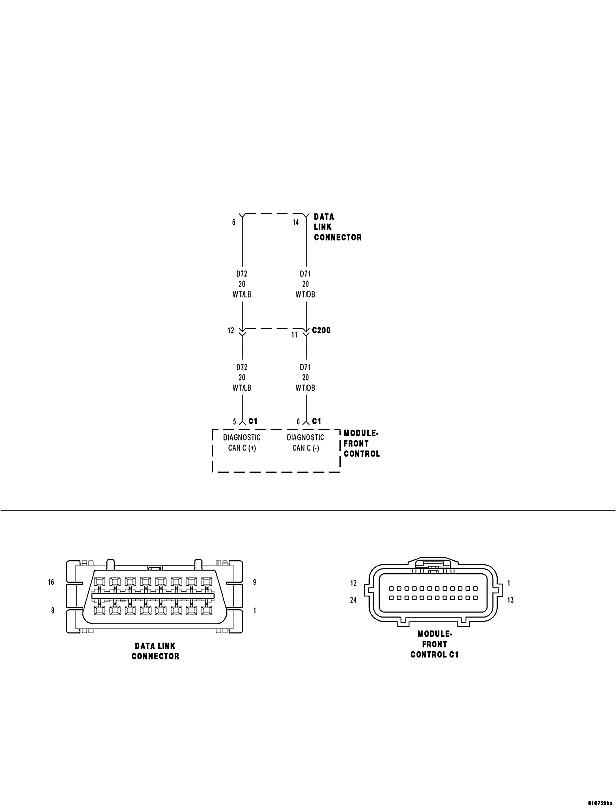

Fig 1: Diagnostic CAN C Circuit Schematic
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
