*No Response From WCM (Sentry Key Remote Entry Module)
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

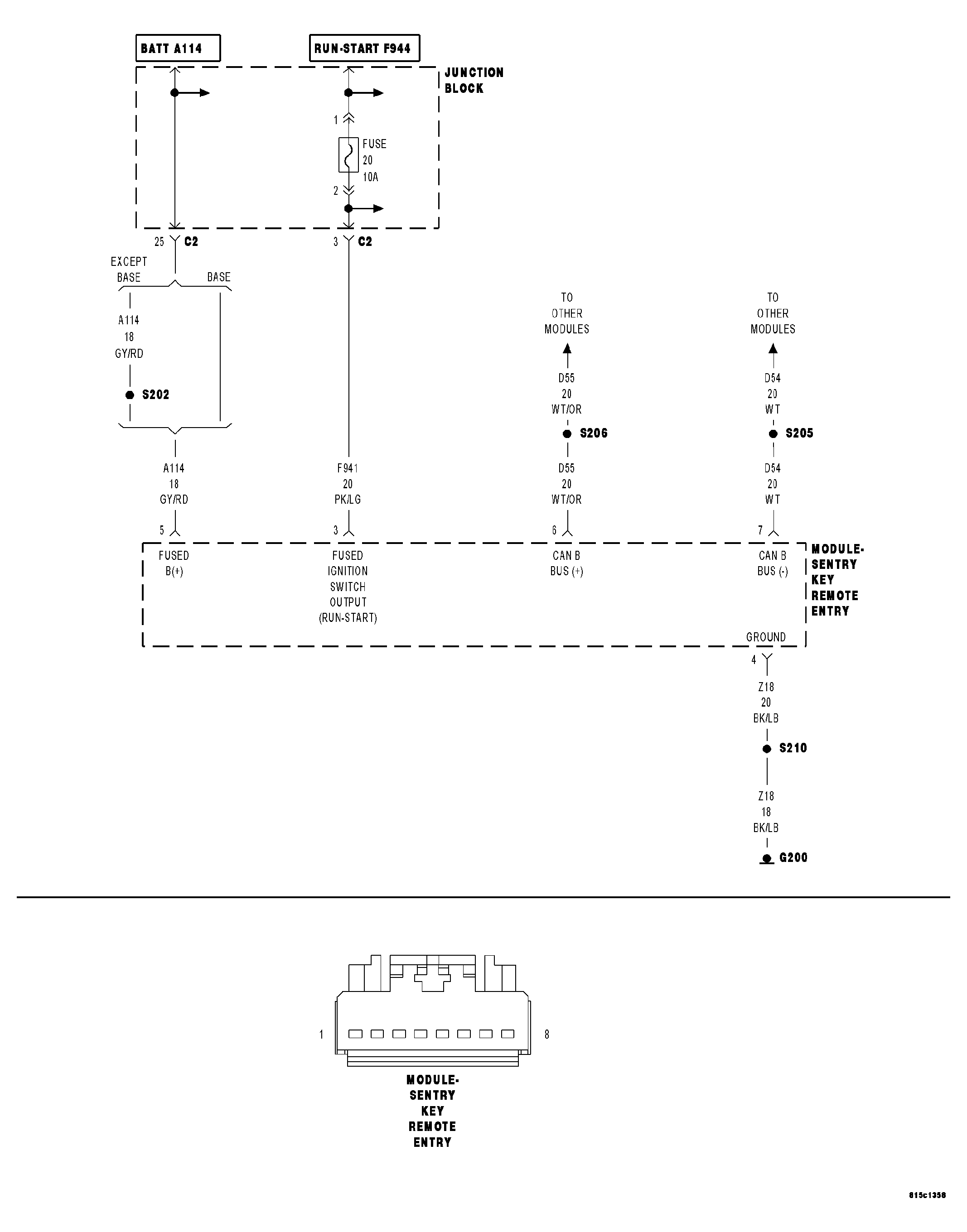

Fig 1: Sentry Key Remote Entry Module Power, Ground & Communication Circuits Schematic
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
