Frame & Bumpers: Frame: CROSSMEMBER-Rear/Transmission: Installation: CROSSMEMBER-Rear/Transmission

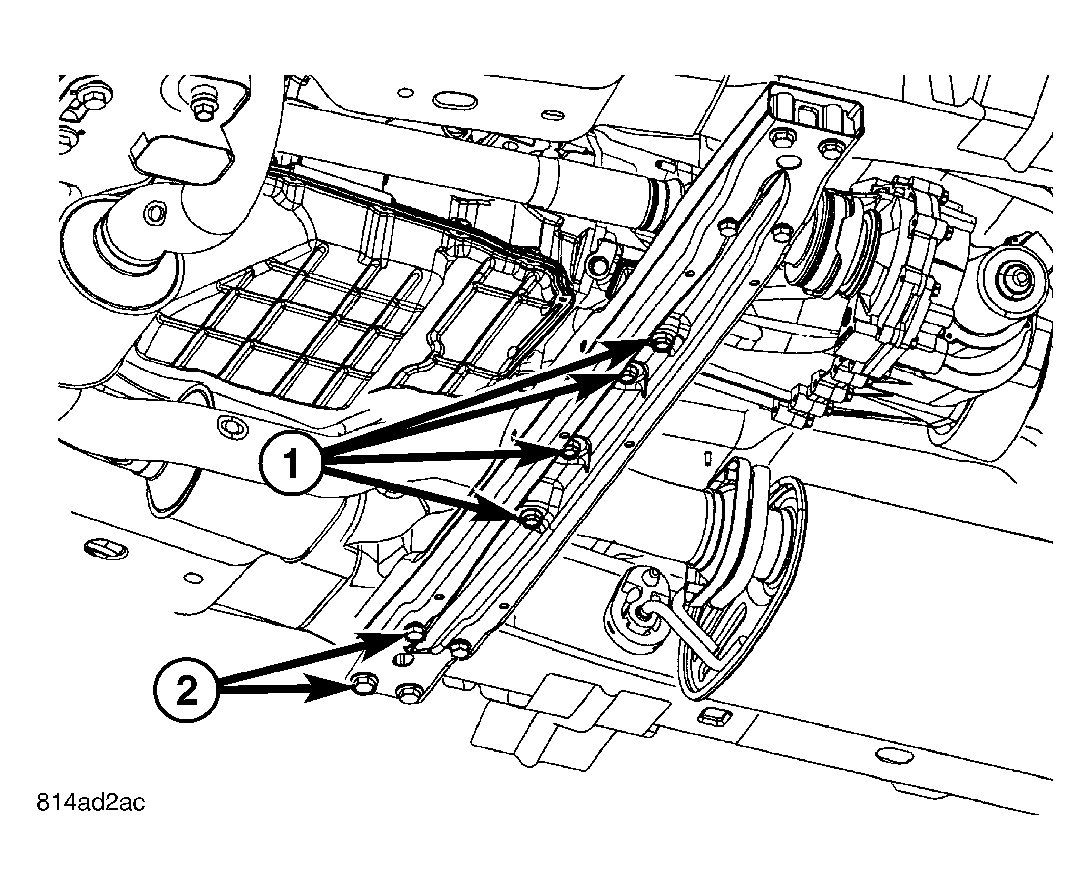

Fig 1: Transfer Case Skid Plate & Transmission Crossmember

Courtesy of CHRYSLER LLC

1. Install the crossmember and install the eight crossmember bolts (2).
2. Tighten the crossmember bolts to 54 N.m (40 ft. lbs.).
3. Remove the lifting device.
4. Install the four transmission mount bolts (1) and tighten to 54 N.m (40 ft. lbs.).
5. Install the skid plate. See INSTALLATION .
