P2767-Input Speed Sensor 2 Circuit No Signal
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

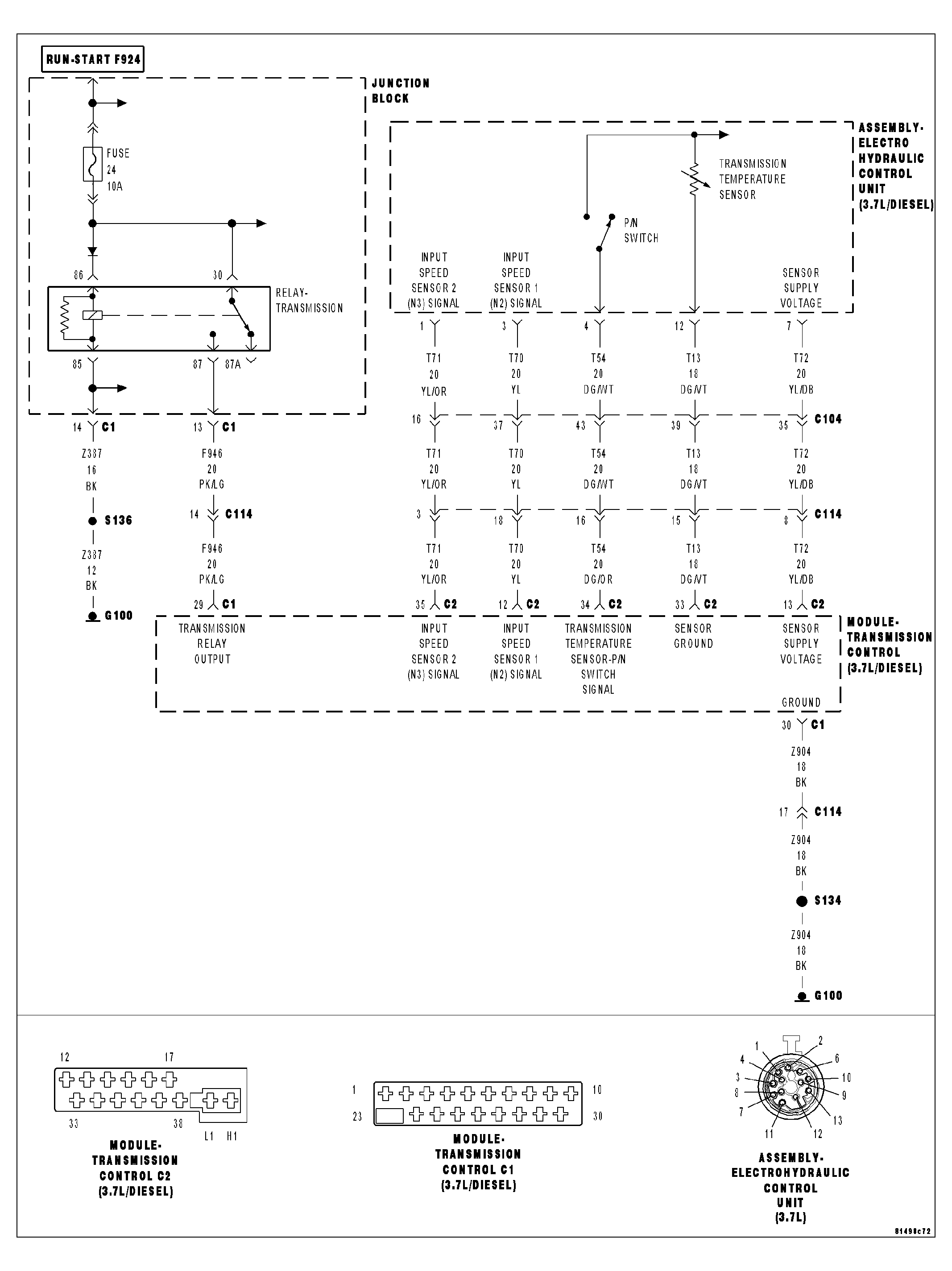

Fig 1: Electrohydraulic Control Unit Circuit Schematic
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
