Lower Suspension Arm

  1. Raise and support the vehicle.
  2. Remove the tire and wheel assembly.
    Fig 1: Removing/Installing Upper Ball Joint At Knuckle
    GC0026767Courtesy of CHRYSLER LLC
  3. Remove the steering knuckle (3). See REMOVAL .
    Fig 2: Identifying Knuckle, Clevis Bracket And Bushing & Stabilizer Link
    GC0026770Courtesy of CHRYSLER LLC
    1 - KNUCKLE
    2 - CLEVIS BRACKET AND BUSHING
    3 - STABILIZER LINK
  4. Remove the shock clevis bracket (3) from the lower control arm.
  5. Remove the stabilizer link (2) at the lower control arm.

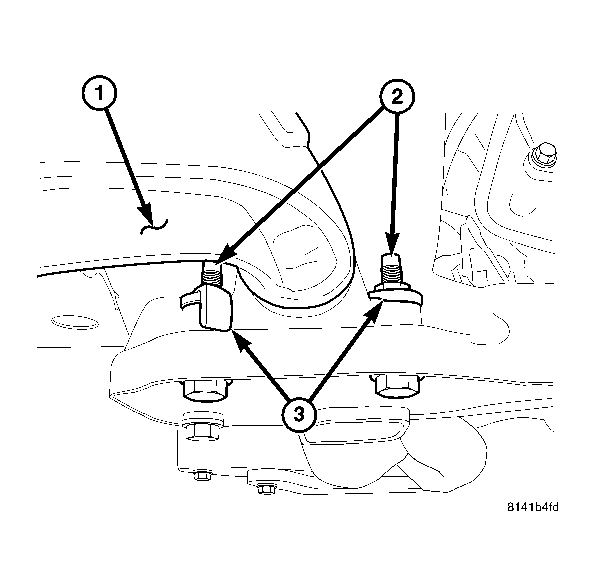

    Fig 3: Lower Control Arm Rear Bolts
    GC0026775Courtesy of CHRYSLER LLC
    1 - LOWER CONTROL ARM
    2 - BOLTS
  6. Remove the nut and bolt from the front of the lower control arm.
  7. Remove the rear bolts (2) and flag nuts (3) from the lower control arm (1).
  8. Remove the lower control arm from the vehicle.
