*No Response From SUNR (Sunroof Motor/Module): Notes

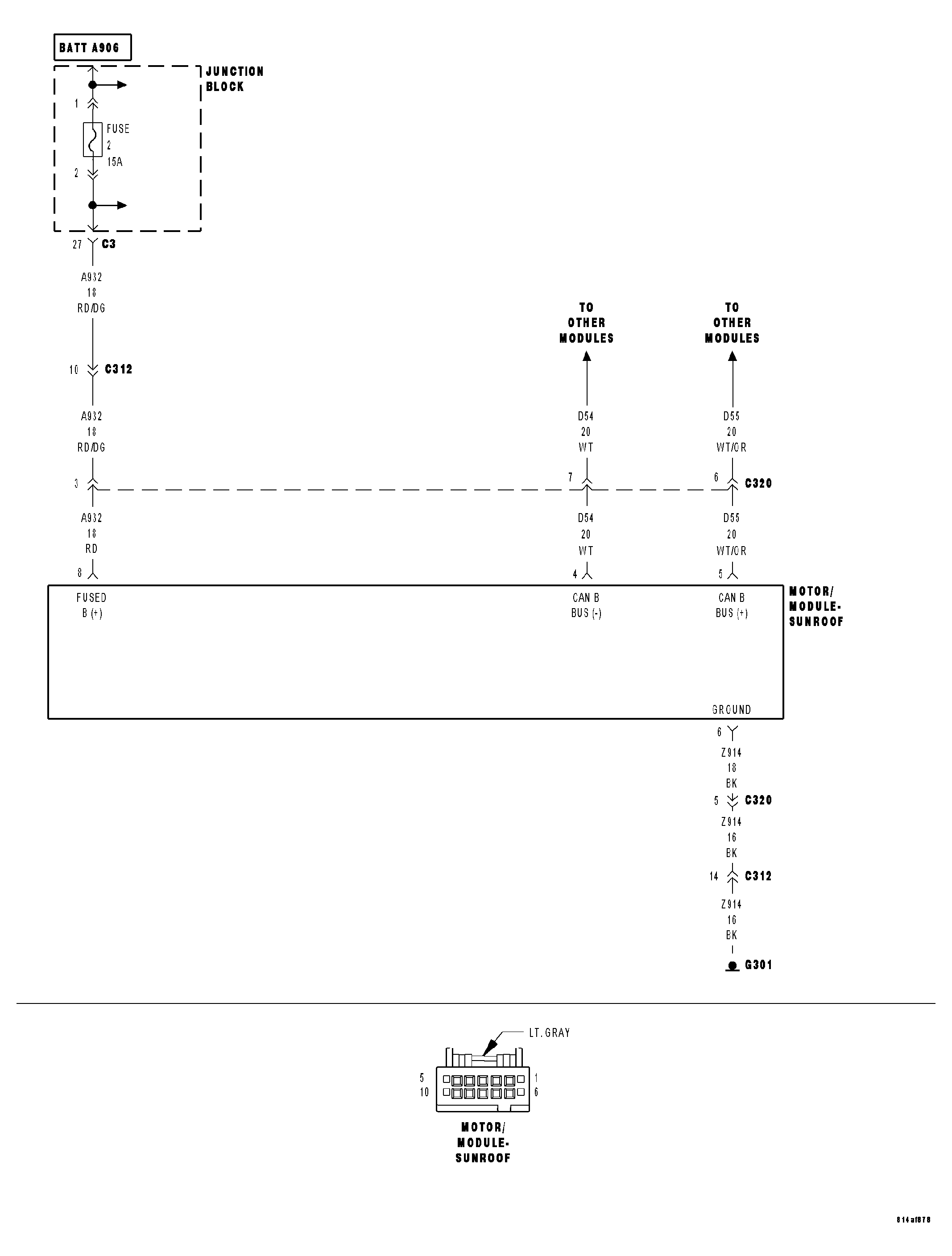

Fig 1: Sunroof Motor/Module Power, Ground & Communication
GC0027586Courtesy of CHRYSLER LLC
