Diagnostic Test

1) VERIFY DTC IS ACTIVE
NOTE: Ensure the IOD fuse is installed and battery voltage is between 10 and 16 volts before proceeding.

With the scan tool, read active DTCs.

Is this DTC active?

Yes
1. Go to 2).
No
1. Refer to the Stored Lost Communication test procedure. Refer to DIAGNOSTIC CODE INDEX table.
2) CHECK FOR ANY OF THE FOLLOWING ACTIVE DTCS
With the scan tool, read active DTCs from all modules.

NOTE: Check for FCM configuration, CAN B or C hardware electrical, VIN Missing/Mismatch, battery or ignition related DTCs.

Does the scan tool display any active DTCs to the conditions listed above?

Yes
1. Diagnose and repair the DTC. Refer to DIAGNOSTIC CODE INDEX table for a complete list of the symptoms. Refer to appropriate Engine ELECTRICAL DIAGNOSTICS article for PCM DTCs.
No
1. Go to 3).
3) VERIFY THAT THE TIRM IS ACTIVE ON THE BUS
Turn the ignition on.

With the scan tool, select Network View and select Advanced.

NOTE: A red X will be next to the module that is not communicating, indicating that the module is not active on the Bus network. A green check indicates that the module is active on the Bus network.

Verify that the TIRM is active on the bus.

Is the TIRM active on the bus?

Yes
1. Replace and program the Front Control Module in accordance with the service information.
2. Perform BODY VERIFICATION TEST .
No
1. Go to 4).
4) (A114) FUSED B(+) CIRCUIT OPEN

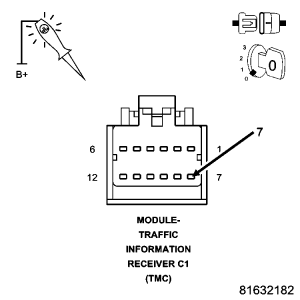

Fig 1: Checking Fused B(+) Circuit
Courtesy of CHRYSLER LLC

Turn the ignition off.

Disconnect the Traffic Information Receiver Module harness connector.

Using a 12-volt test light connected to ground, check the (A114) Fused B(+) circuit.

Does the test light illuminate brightly?

Yes
1. Go to 5).
No
1. Repair the (A114) Fused B(+) circuit for an open or short.
2. Perform BODY VERIFICATION TEST .
5) (Z909) GROUND CIRCUIT OPEN

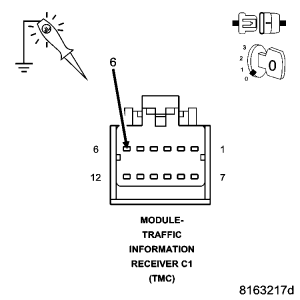

Fig 2: Checking Ground Circuit For Open
Courtesy of CHRYSLER LLC

Using a 12-volt test light connected to 12-volts, check the (Z909) ground circuit.

Does the test light illuminate brightly?

Yes
1. Go to 6).
No
1. Repair the (Z909) ground circuit for an open.
2. Perform BODY VERIFICATION TEST .
6) (D55) AND (D54) CAN B BUS CIRCUITS OPEN

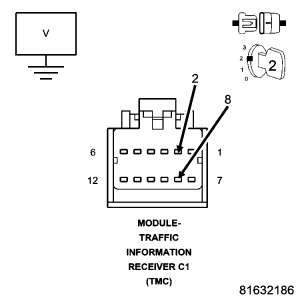

Fig 3: Measuring Resistance Between CAN B Bus Circuits And Ground
Courtesy of CHRYSLER LLC

NOTE: One open circuit will not cause this condition.

Measure the voltage between the (D54) CAN B Bus (-) circuit and ground.

Measure the voltage between the (D55) CAN B Bus (+) circuit and ground.

Is there any voltage present on either circuit?

Yes
1. Replace the Trailer Lighting Module in accordance with the service information.
2. Perform BODY VERIFICATION TEST .
No
1. Repair the (D55) and (D54) CAN B Bus circuits for an open. Inspect the connector for damage.
2. Perform BODY VERIFICATION TEST .
