Power Windows - Electrical Diagnostics
>>
DTC Troubleshooting
>>
B185D-Passenger Window Switch Circuit Stuck - PDM
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

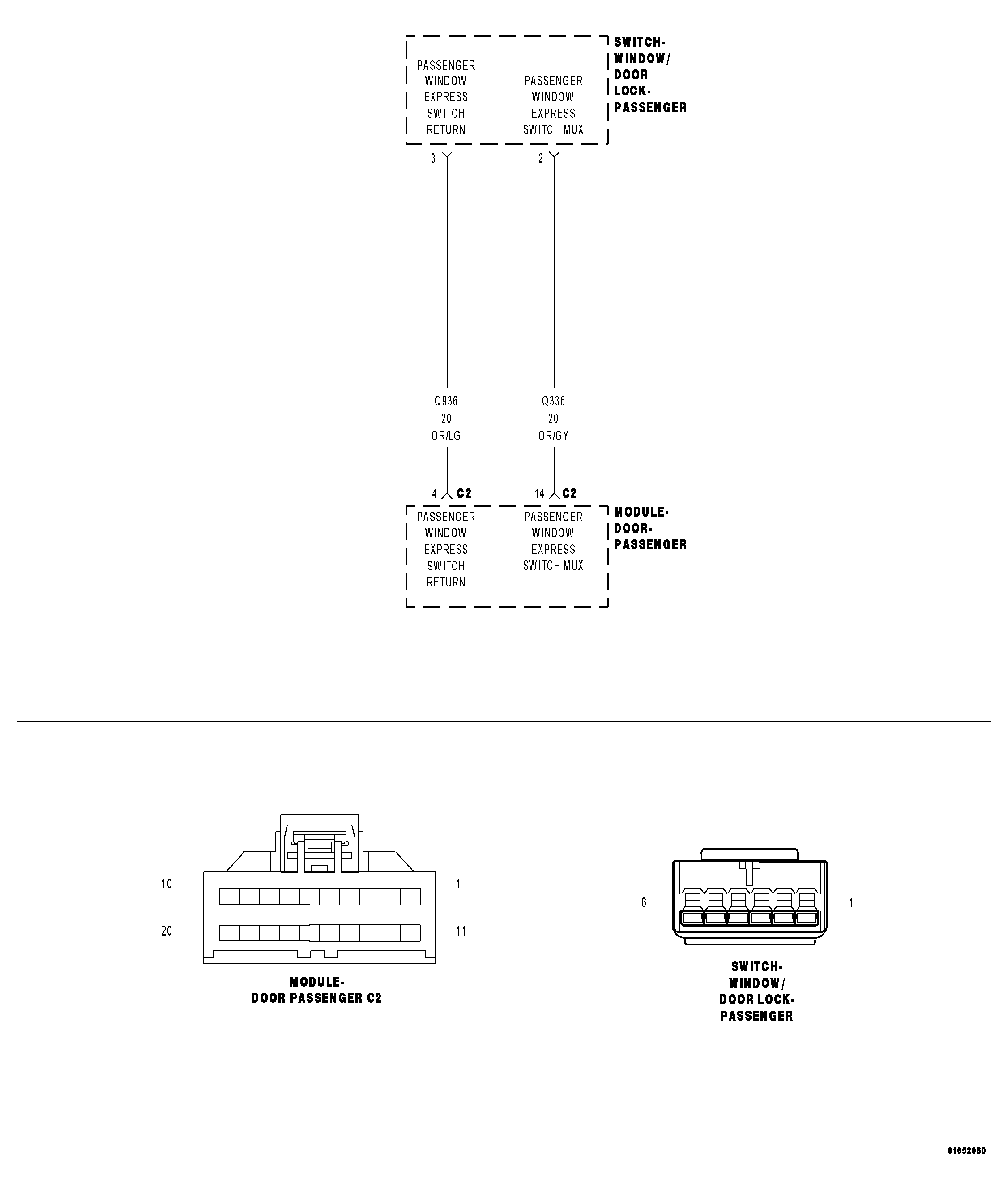

Fig 1: Passenger Window Switch Circuit Schematic
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
