Overhead Console Power Liftgate Switch

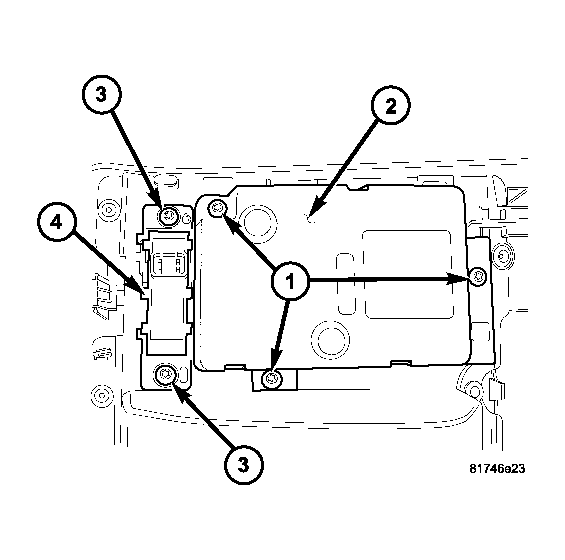

Fig 1: Removing/Installing Power Sunroof Switch
GC0045541Courtesy of CHRYSLER LLC
  1. Disconnect and isolate the battery negative cable.
  2. Remove the overhead console from the vehicle. Refer to REMOVAL .
  3. Remove the screws (3) attaching the switch (4) to the overhead console.
  4. Remove the switch (4) from the overhead console.
