Traffic Message Center Module: Removal: Removal

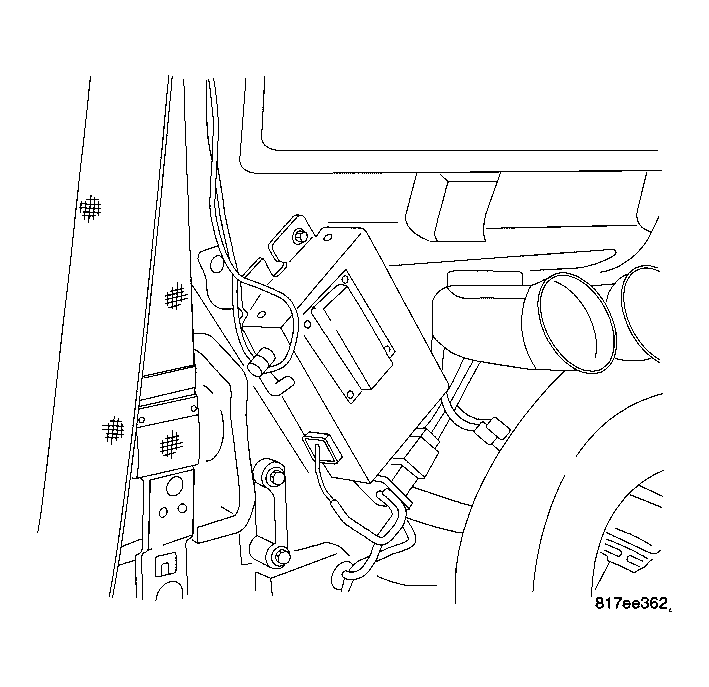

Fig 1: Identifying Traffic Message Center Module

Courtesy of CHRYSLER LLC

1. Disconnect and isolate the battery negative cable.
2. Remove the rear quarter trim panel. Refer to REMOVAL .
3. Disconnect the electrical connectors.
4. Remove the mounting fasteners and remove the Traffic Message Center Module (TMC).
