Power Liftgate System - Electrical Diagnostics
>>
Power Liftgate - Electrical Diagnostics
>>
DTC Troubleshooting
>>
B194F-Power Liftgate Temperature Sensor Circuit Performance
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

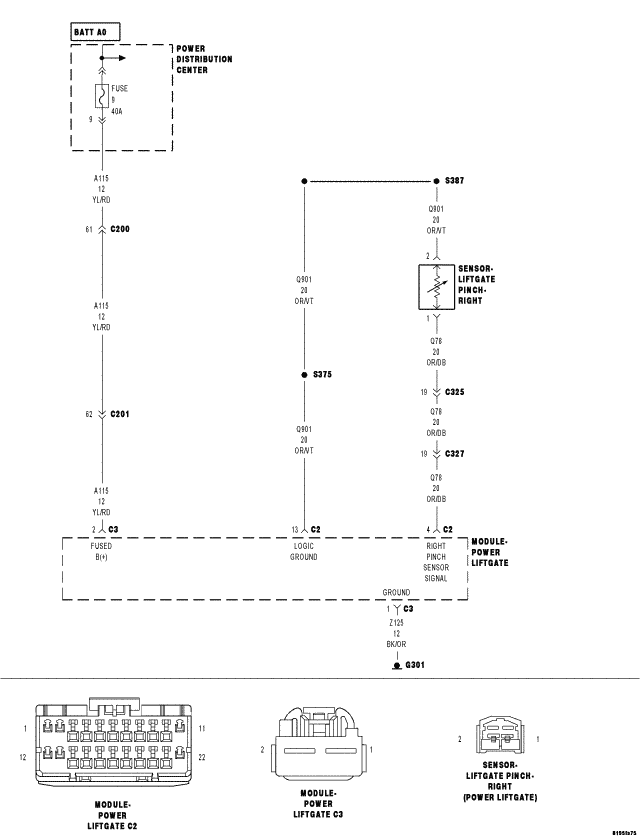

Fig 1: Power Liftgate Pinch Sensor Circuit Schematic
Courtesy of CHRYSLER LLC
