Power Liftgate System - Electrical Diagnostics
>>
Power Liftgate - Electrical Diagnostics
>>
DTC Troubleshooting
>>
B196D-Power Liftgate Open Direction - Full Open Switch Performance
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

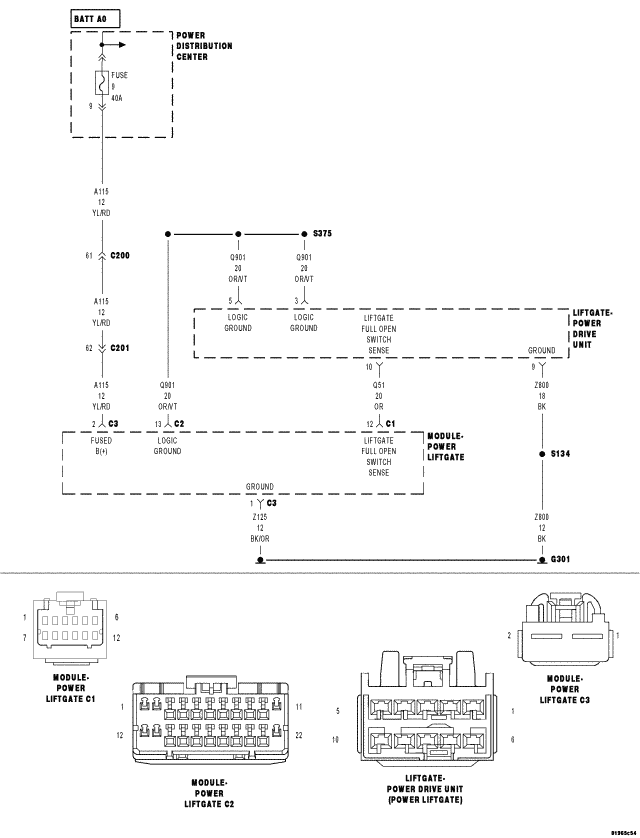

Fig 1: Power Liftgate Circuit Schematic
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
