Diagnostic Test

1) TEST FOR INTERMITTENT CONDITION
Turn the ignition on.

NOTE: Ensure the IOD fuse is installed and battery voltage is between 10.0 and 16.0 volts.

With the scan tool, select ECU view.

NOTE: A red X will be next to the module that is not communicating, indicating that the module is not active on the Bus network. A green check indicates that the module is active on the Bus network.

NOTE: Check the FCM for any active CAN C hardware and any ignition related DTCs, perform DTCs before proceeding.

Does the scan tool display a red X next to the module?

Yes
1. Go to step 2).
No
1. The no response condition is not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring for chafed, pierced, pinched, and partially broken wires and the wiring harness connectors for broken, bent, pushed out, and corroded terminals.
2) CHECK ECM POWER AND GROUND
Check the ECM power and ground circuits.

Were any problems found?

Yes
1. Repair as necessary.
2. Perform ECM VERIFICATION TEST.
No
1. Go to step 3).
3) (D65) CAN C BUS (+) CIRCUIT OPEN

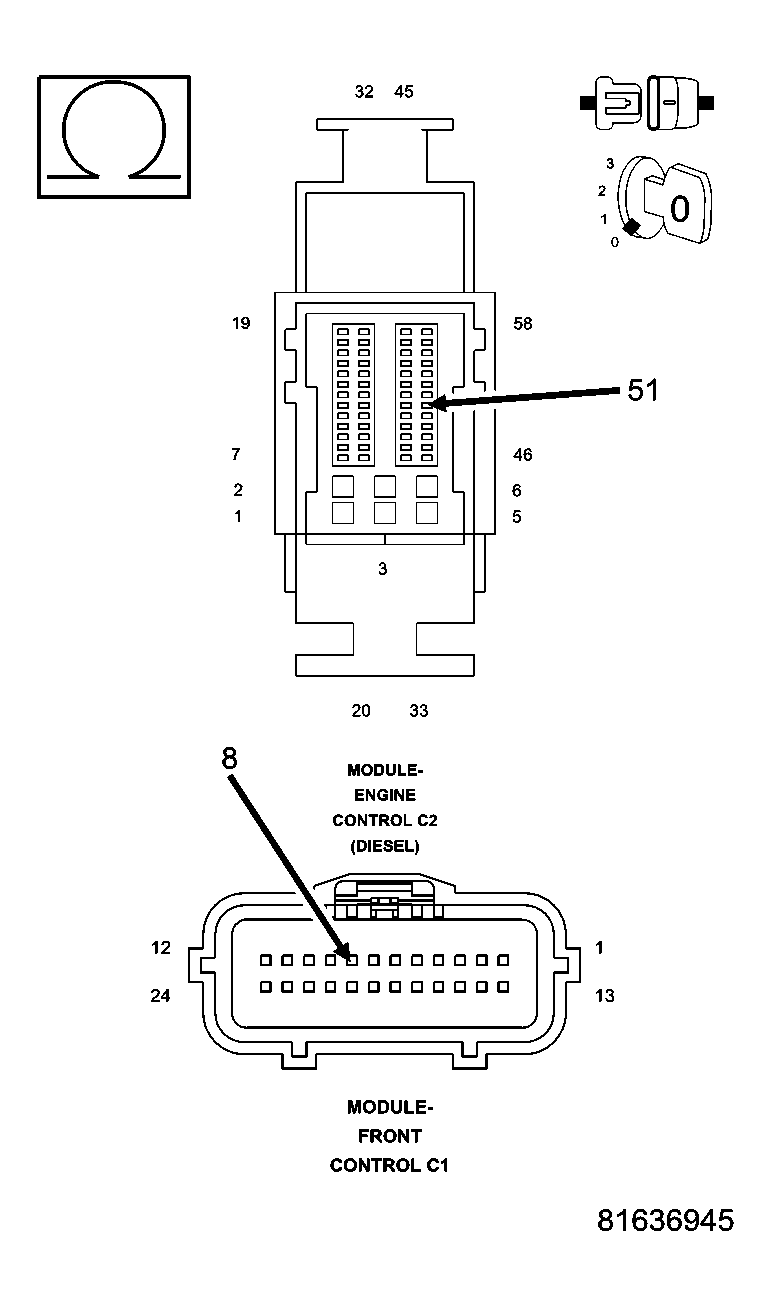

Fig 1: Checking CAN C BUS (+) Circuit
Courtesy of CHRYSLER LLC

Turn the ignition off.

Disconnect the FCM C1 harness connector.

Disconnect the ECM C2 harness connector.

Measure the resistance of the (D65) CAN C Bus (+) circuit between the FCM connector and the ECM connector.

Is resistance below 5.0 ohms?

Yes
1. Go to step 4).
No
1. Repair the (D65) CAN C Bus (+) circuit for an open.
2. Perform ECM VERIFICATION TEST.
4) (D64) CAN C BUS (-) CIRCUIT OPEN

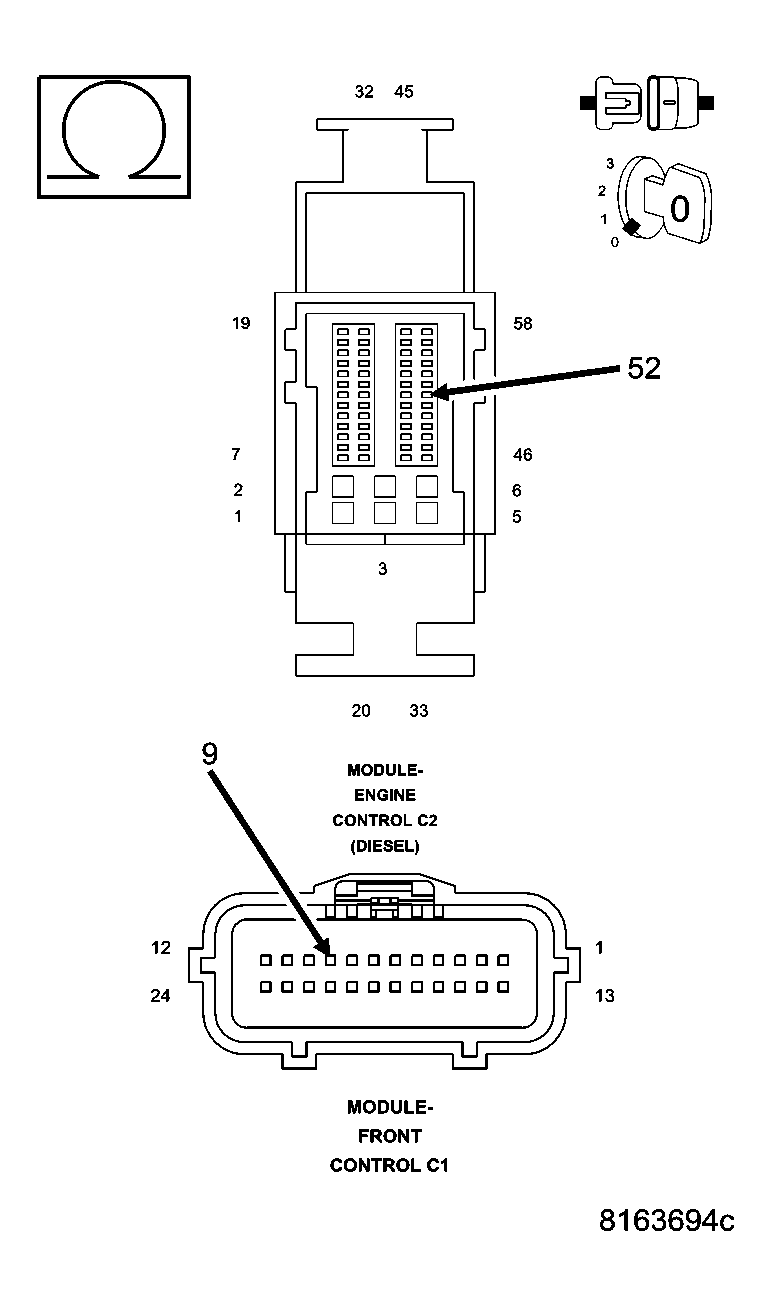

Fig 2: Checking CAN C BUS (-) Circuit
Courtesy of CHRYSLER LLC

Measure the resistance of the (D64) CAN C Bus (-) circuit between the FCM connector and the ECM connector.

Is resistance below 5.0 ohms?

Yes
1. Replace and program the Engine Control Module in accordance with the service information.
2. Perform ECM VERIFICATION TEST.
No
1. Repair the (D64) CAN C Bus (-) circuit for an open.
2. Perform ECM VERIFICATION TEST.
