Circuit Schematic

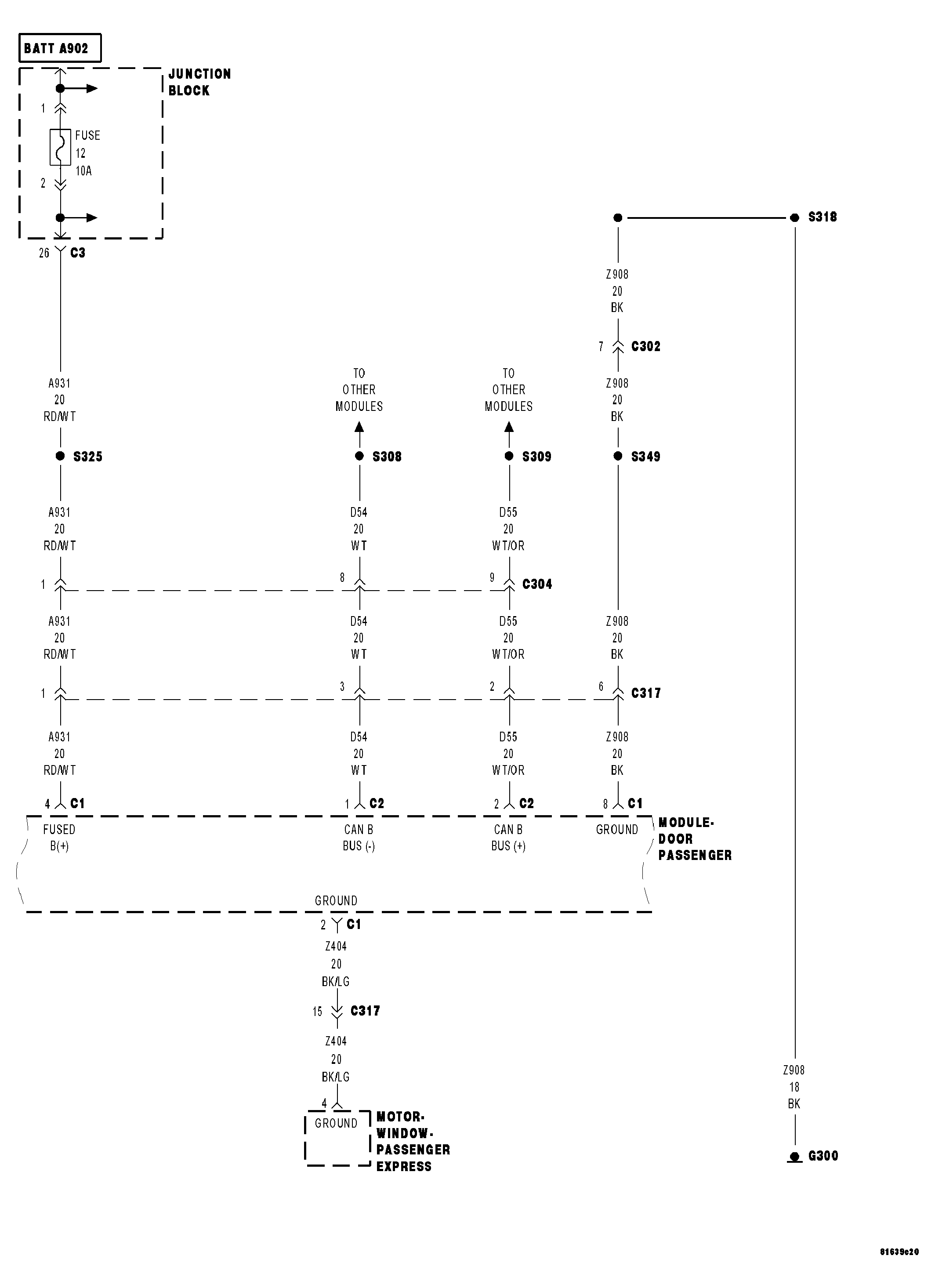

Fig 1: Passenger Door Module Power, Ground & Communication Circuits Schematic
GC0045371Courtesy of CHRYSLER LLC
