Commander Base, 4.7 P, AWD
>>
Repair and Diagnosis (Single Page)
>>
Accessories & Equipment
>>
Communication Devices
>>
Electronic Control Modules - Electrical Diagnostics
>>
Electronic Control Modules - Electrical Diagnostics
>>
DTC Troubleshooting
>>
*No Response From VES (Monitor/DVD Media System)
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

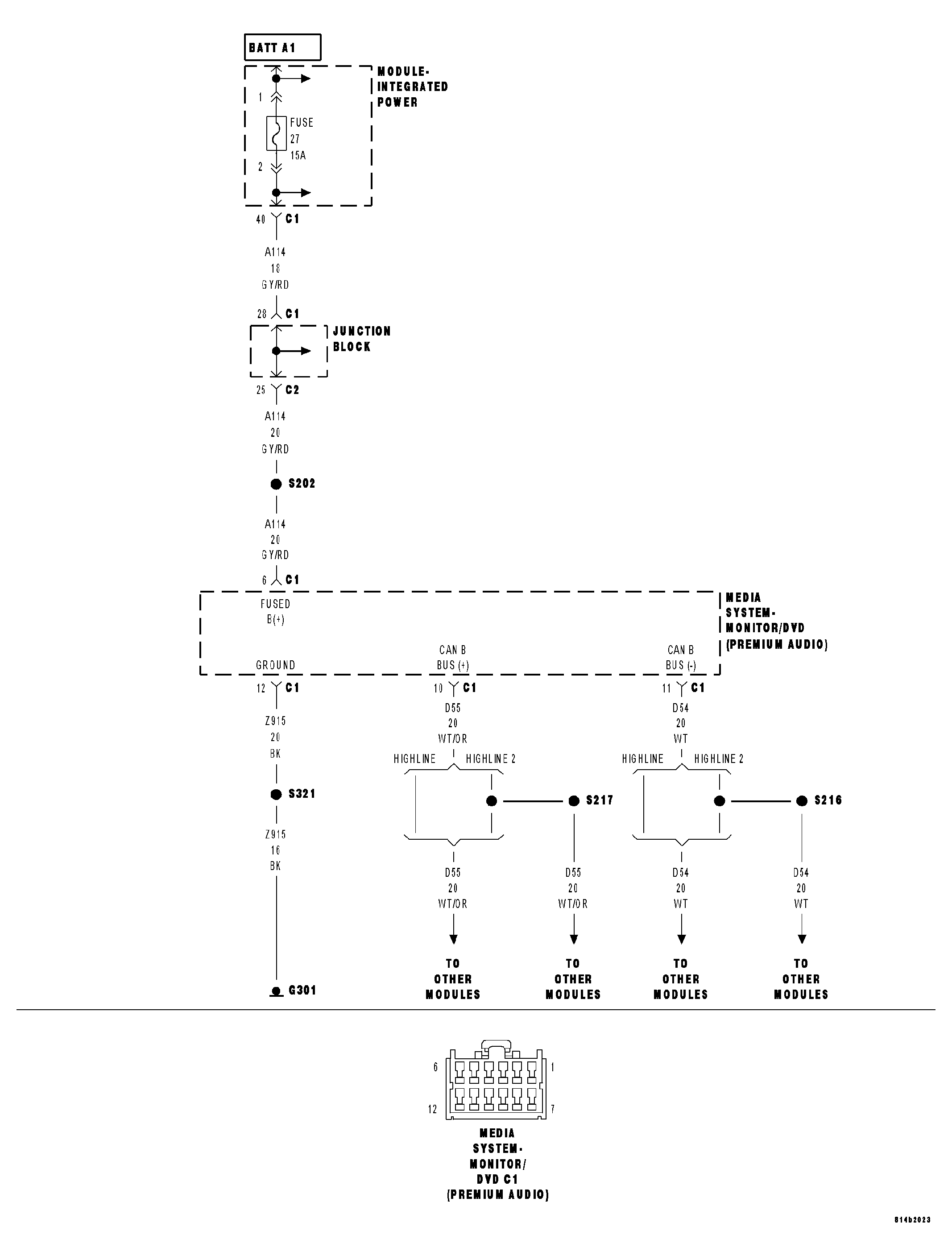

Fig 1: Monitor/DVD Media System Power, Ground & Communication Circuit Schematic
