Speed Control Servo

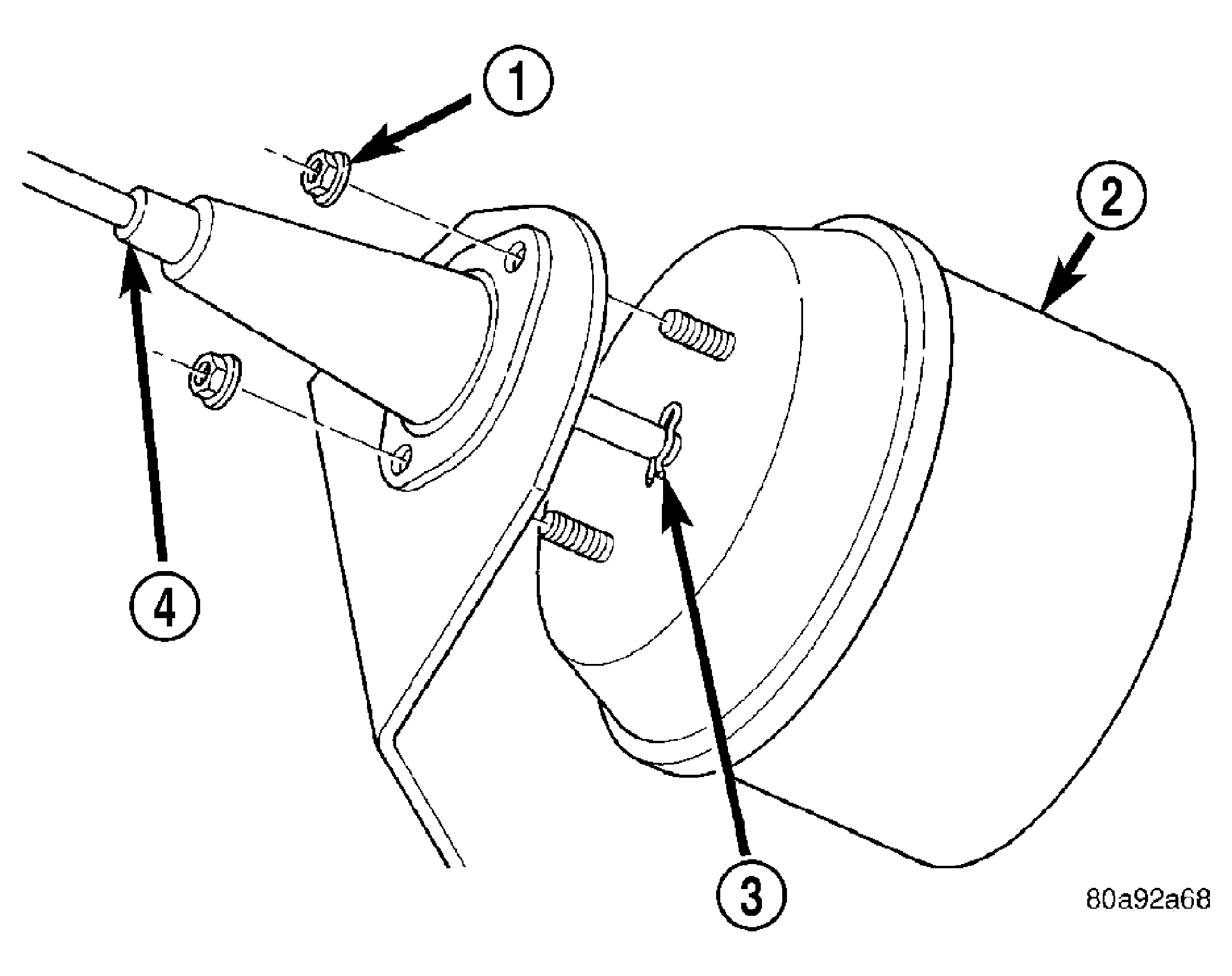

Fig 1: View Of Servo, Cable Sleeve, Retaining Clip & Mounting Nuts

Courtesy of CHRYSLER LLC

Position servo (2) to mounting bracket.
Align hole in cable connector with hole in servo pin. Install cable-to-servo retaining clip (3).
Insert servo mounting studs through holes in servo mounting bracket.

Install two servo-to-mounting bracket nuts (1) and tighten. Refer to TORQUE SPECIFICATIONS .

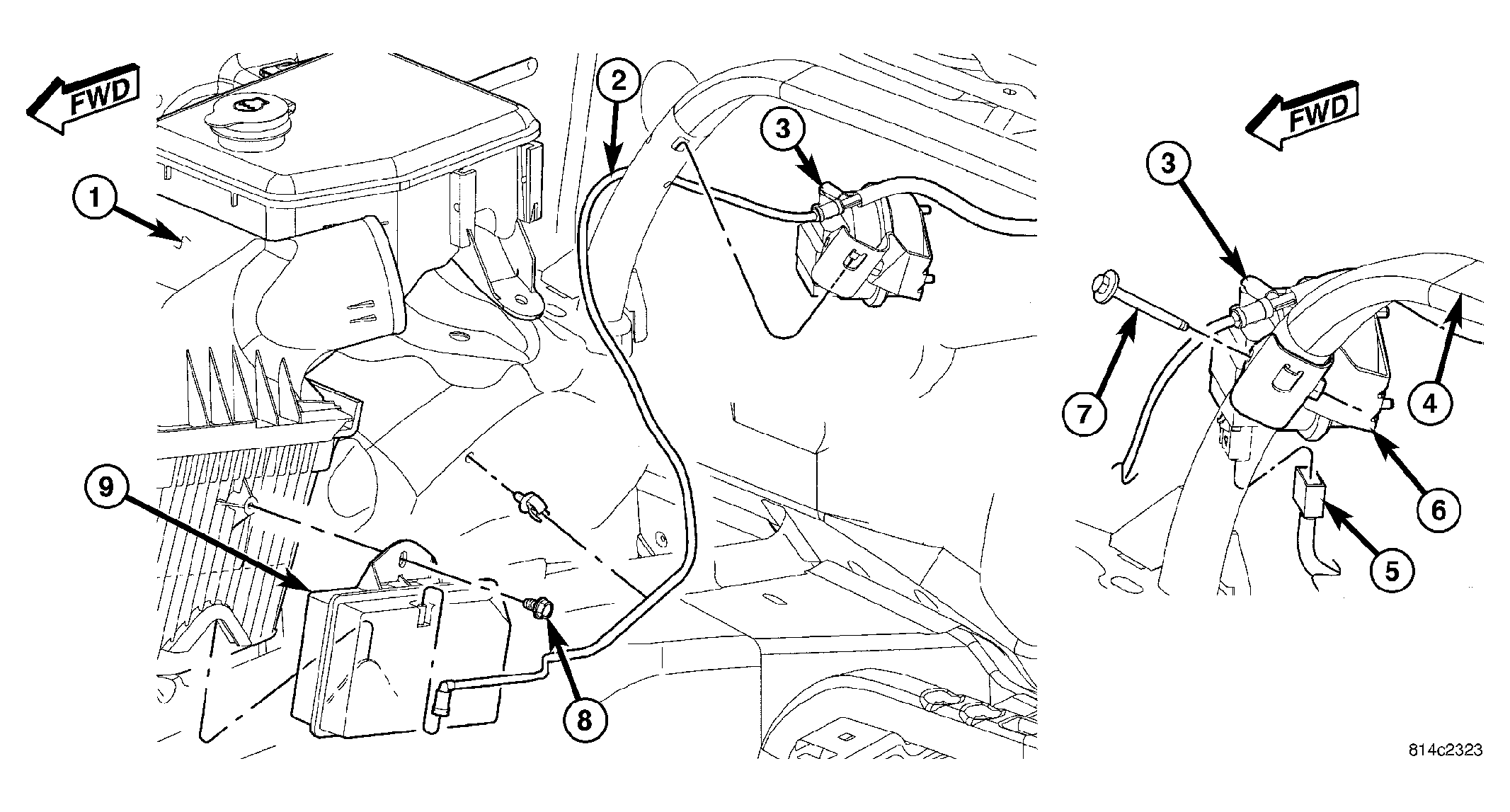

Fig 2: Identifying Speed Control Components

Courtesy of CHRYSLER LLC

1 - Air Cleaner Box

2 - Vacuum Line

3 - Speed Control Servo

4 - Cross Support

5 - Electrical. Connector

6 - Servo Mounting Bracket

7 - Servo Mounting Bolt

8 - Vacuum Reservoir Mounting Bolt

9 - Vacuum Reservoir

Position servo assembly (3) to cross-support (4) and install mounting bolt (7). Tighten bolt. Refer to TORQUE SPECIFICATIONS .
Connect vacuum line at servo.
Connect electrical connector (5) at servo.
Connect servo cable to throttle body. Refer to SERVO CABLE Removal/Installation.
Connect negative battery cable to battery.
Before starting engine, operate accelerator pedal to check for any binding.
