Speed Control Switch

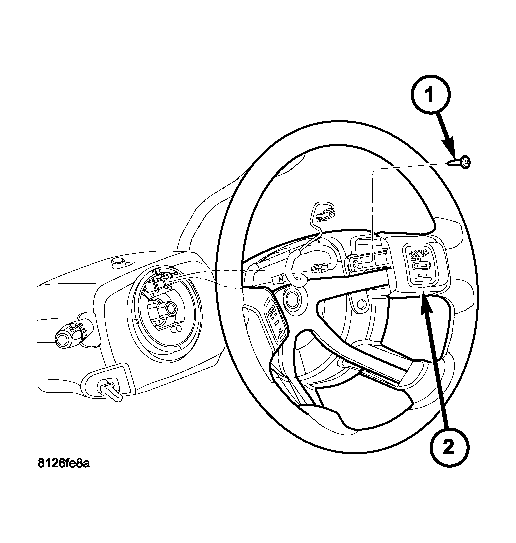

Fig 1: Identifying Speed Control Switch
GC0010425Courtesy of CHRYSLER LLC
  1. Position switch (2) to steering wheel.
  2. Install switch mounting screw (1) and tighten. Refer to TORQUE SPECIFICATIONS .
  3. Plug electrical connector into switch.
  4. Install airbag module. Refer to RESTRAINTS - SERVICE INFORMATION article.
  5. Connect negative battery cable to battery.
