Satellite Receiver Module

WARNING: Disable the airbag system before attempting any steering wheel, steering column, seat belt tensioner, side airbag, or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the airbag system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the airbag system. Failure to take the proper precautions could result in accidental airbag deployment and possible personal injury.
  1. Disconnect and isolate the battery negative cable.
  2. Fold and tumble the right outboard second row seat assembly forward.
  3. Remove the carpeted cover panel from over the cavity on the right outboard end of the intermediate step assembly.
  4. Remove the mounting fasteners.

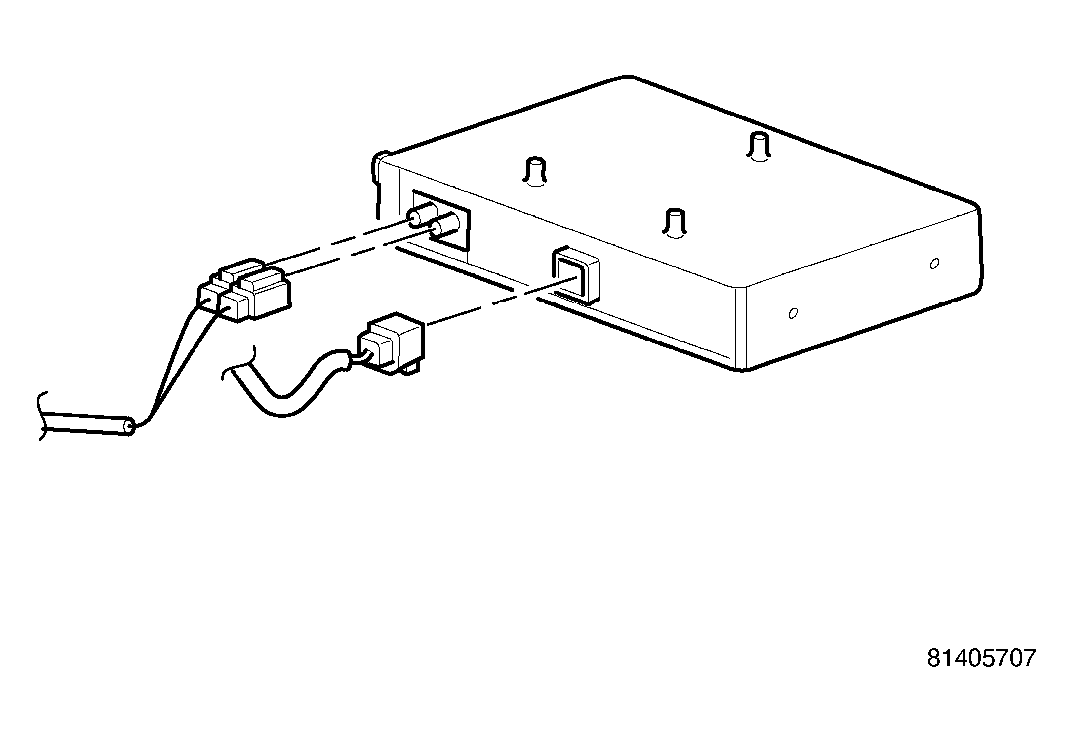

    Fig 1: Disconnecting/Connecting Electrical Harness Connectors
    GC0028987Courtesy of CHRYSLER LLC
  5. Disconnect the antenna and electrical harness connectors.
  6. Remove the module.
