B1D7B-Seat Horizontal Motor Control Circuit Performance
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

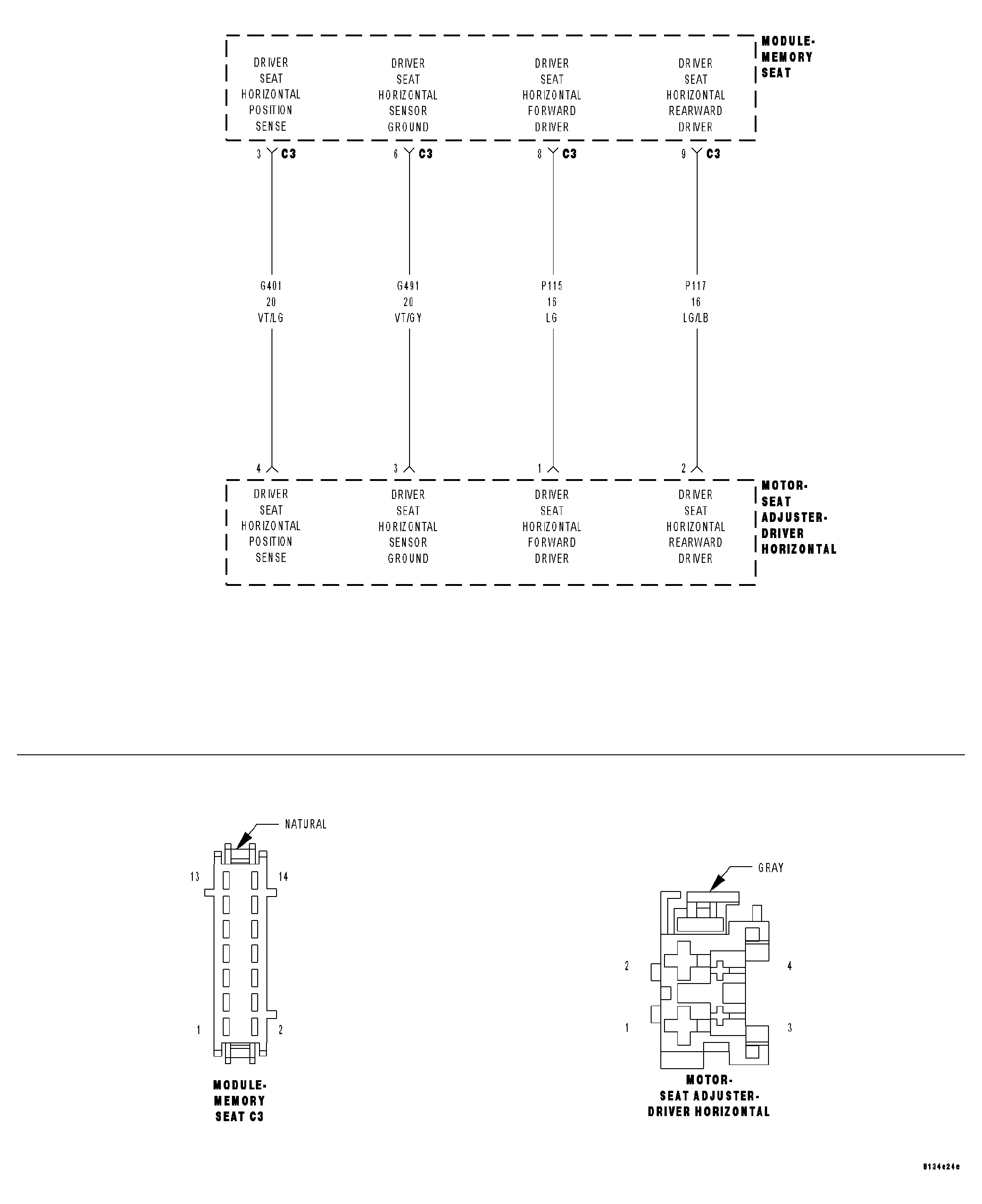

Fig 1: Driver Seat Horizontal Adjuster Motor Circuit Schematic
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
