Repair and Diagnosis (Single Page)
>>
Brakes
>>
Traction Control
>>
Anti-Lock Brake System - Electrical Diagnostics
>>
Abs - Electrical Diagnostics
>>
DTC Troubleshooting
>>
C1210-G Sensor Input Circuit Performance
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

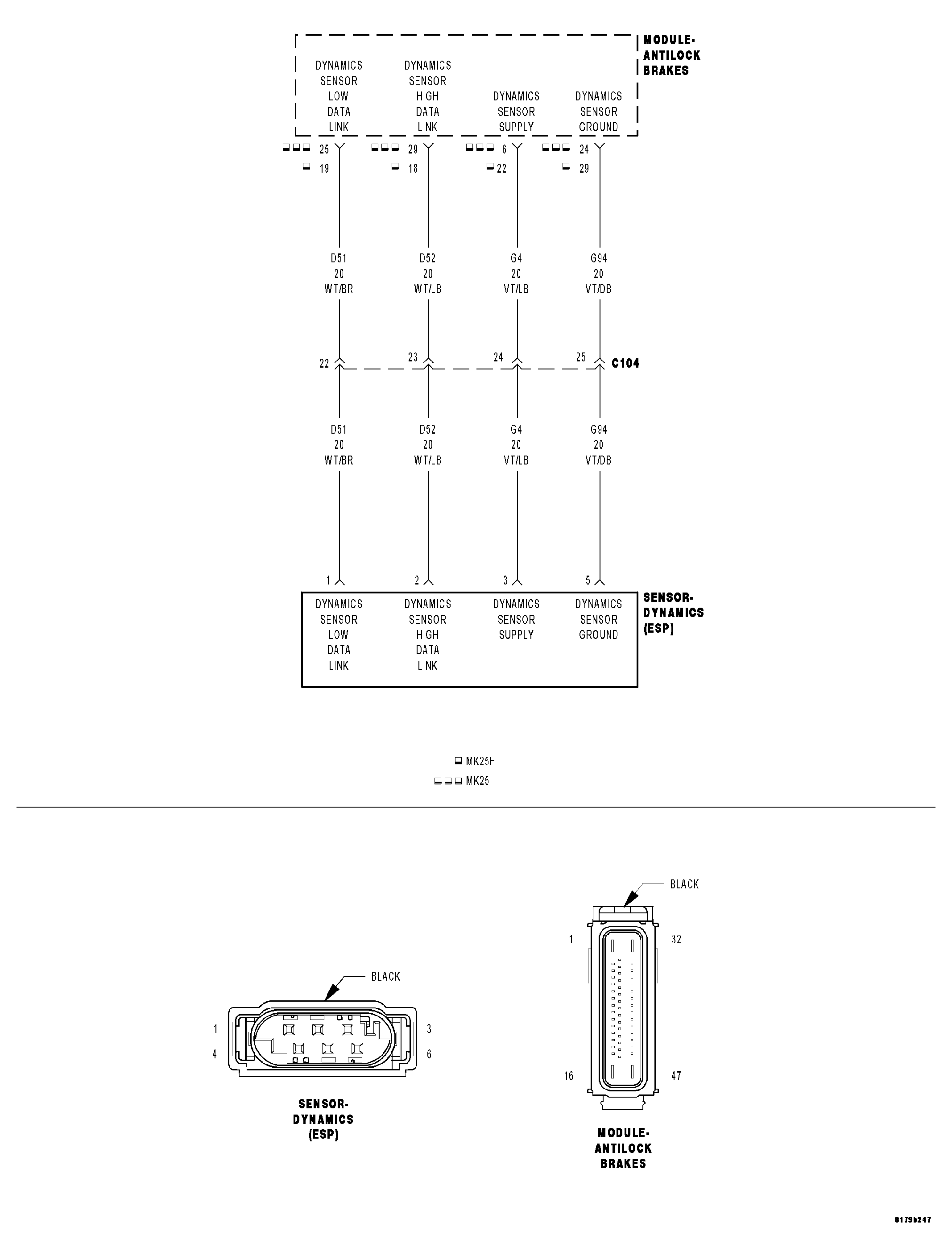

Fig 1: Dynamic (G) Sensor Circuit Schematic
