Remote Start Antenna Module: Description: Description

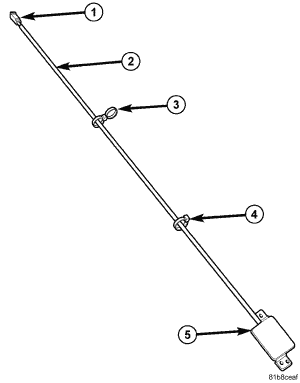

Fig 1: Remote Start Antenna Module Assembly
GC0058441Courtesy of CHRYSLER LLC

The Remote Start Antenna Module Assembly consists of an electrical connection to the WCM/SKREEM (1), a length of coax cable (2), mounting clips, or tie wraps (3) and (4), and a control module/antenna (5).
