Jeep
>>
2007
>>
Commander Base, 4.7 P, AWD
>>
Repair and Diagnosis (Single Page)
>>
Engine Performance
>>
System
>>
DTCS P0325 To P0501
>>
P0405-EGR Position Sensor Circuit Low
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

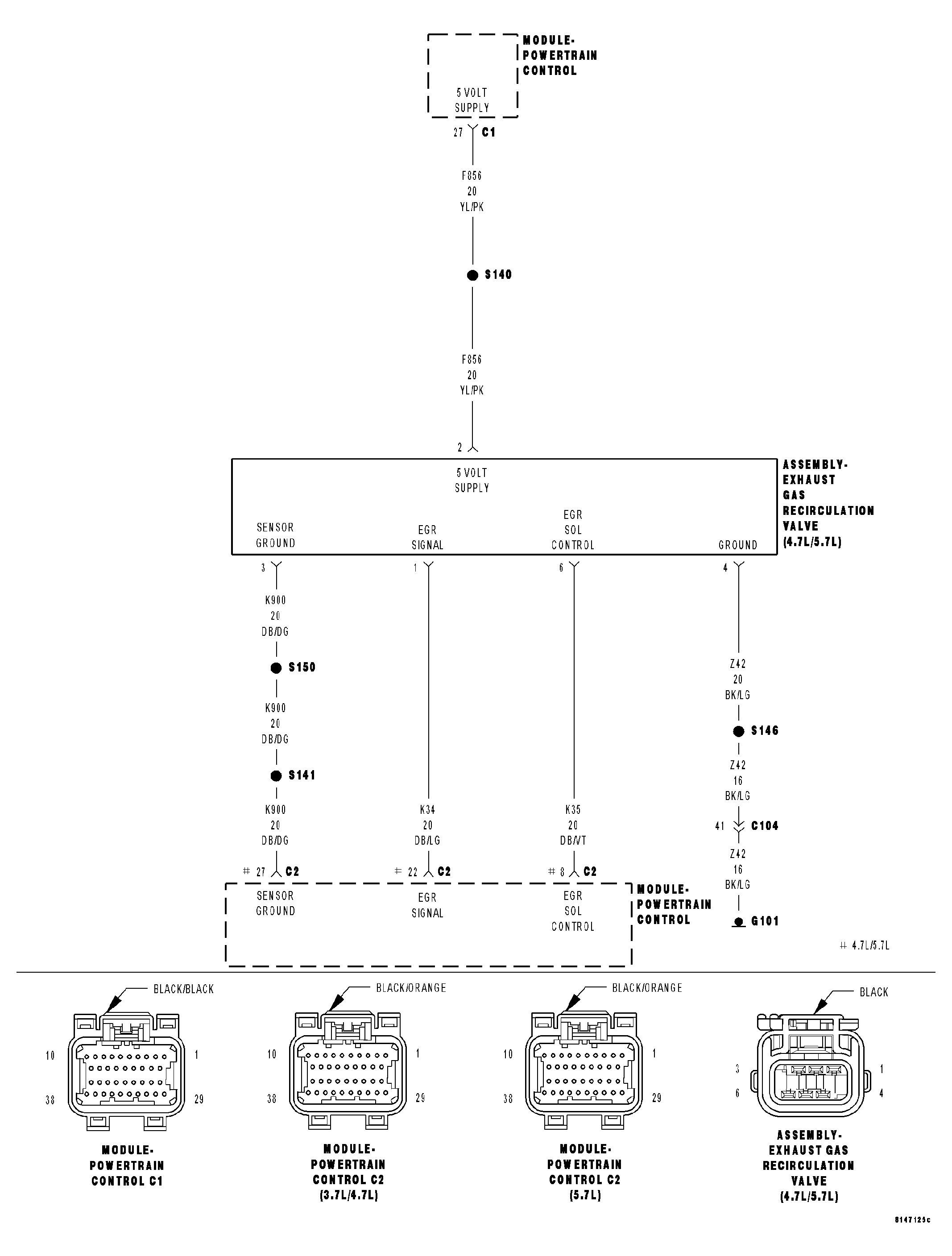

Fig 1: EGR System Circuit Schematic
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
