Circuit Schematic

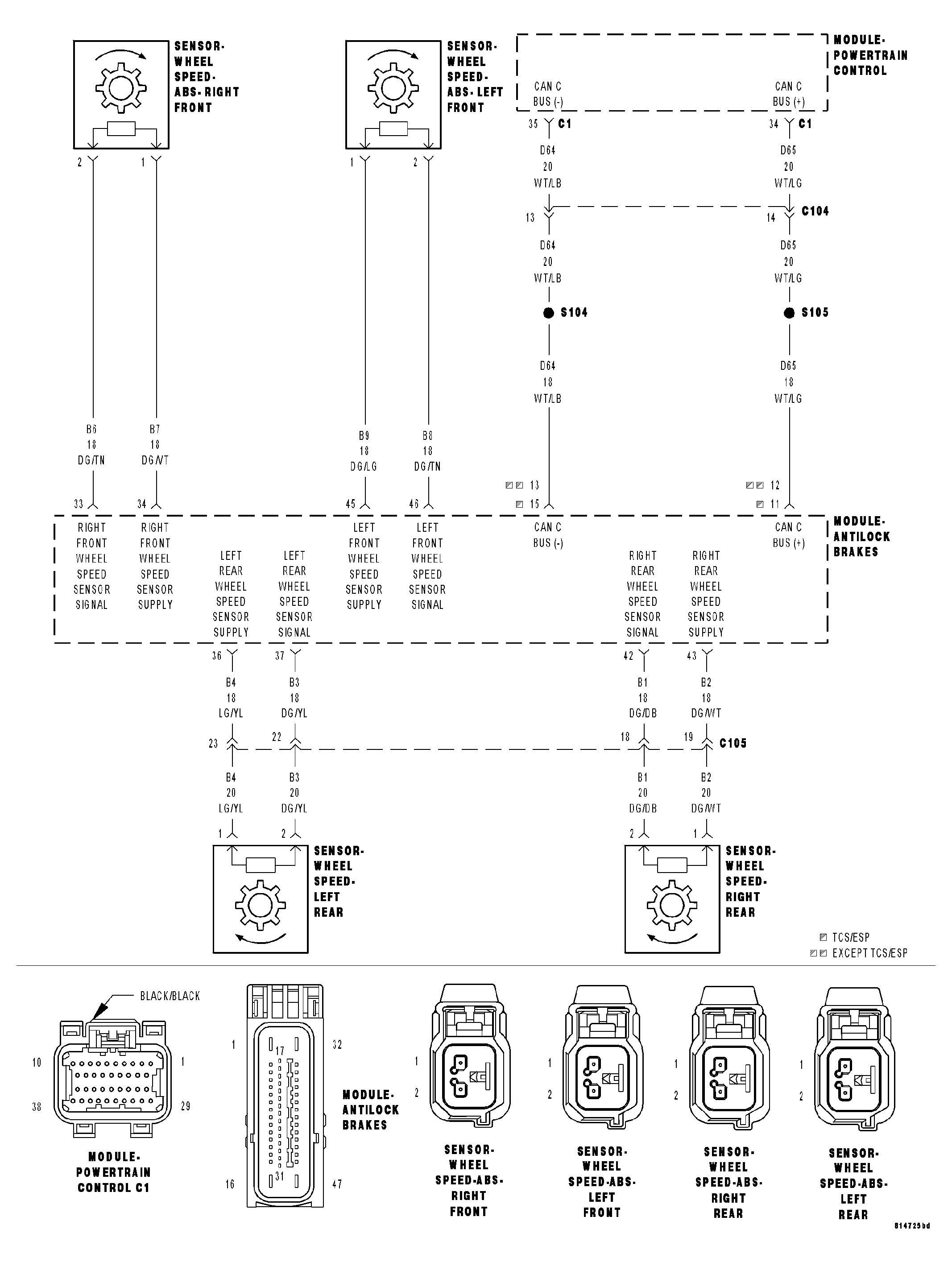

Fig 1: Antilock Brake System Circuit Schematic
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
