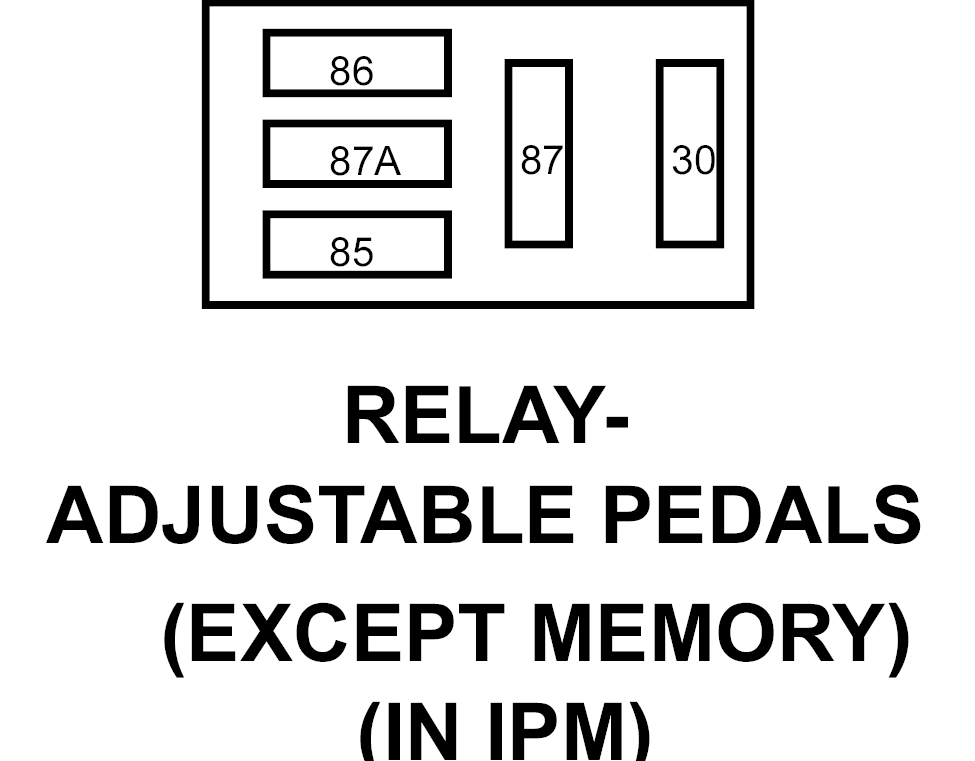

Adjustable Pedals Relay (Except Memory) Connector End View
RELAY-ADJUSTABLE PEDALS - 0-WAY(EXCEPT MEMORY)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 30 |
INTERNAL |
FUSED B(+) |
| 85 |
INTERNAL |
ADJUSTABLE PEDALS RELAY CONTROL |
| 86 |
INTERNAL |
FUSED B(+) |
| 87 |
- |
- |
| 87A |
A72 18RD/OR |
ADJUSTABLE PEDALS RELAY OUTPUT |
