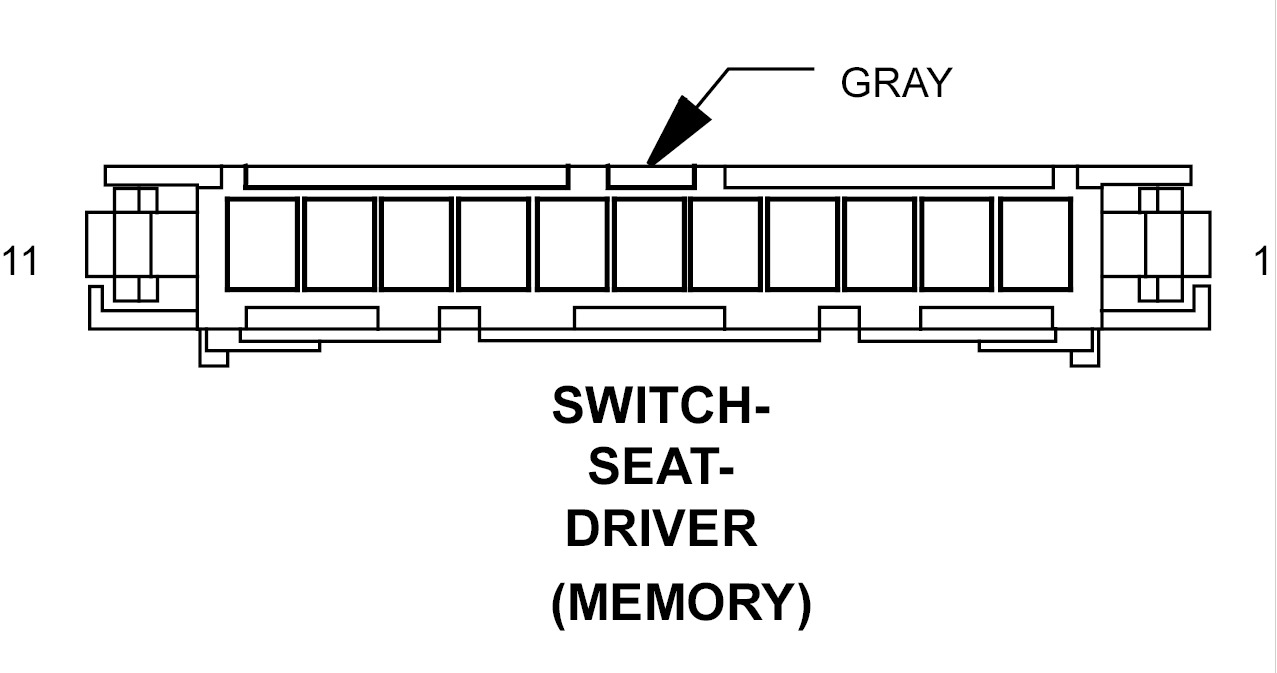

Driver Seat Switch (Memory) Connector End View
SWITCH-SEAT-DRIVER - GRAY 11-WAY(MEMORY)
| CAV | CIRCUIT | FUNCTION |
| 1 | P599 20LG/TN | DRIVER SEAT SWITCH MUX RETURN |
| 2 | - | - |
| 2 | - | - |
| 3 | - | - |
| 4 | P239 20LG/WT | DRIVER SEAT SWITCH REAR VERTICAL/HORIZONTAL SWITCH MUX |
| 5 | - | - |
| 6 | - | - |
| 7 | - | - |
| 8 | - | - |
| 9 | - | - |
| 10 | P9 20LG/OR | DRIVER SEAT SWITCH SUPPLY |
| 11 | P339 20LG/DB | DRIVER SEAT SWITCH FRONT VERTICAL/RECLINER SWITCH MUX |
