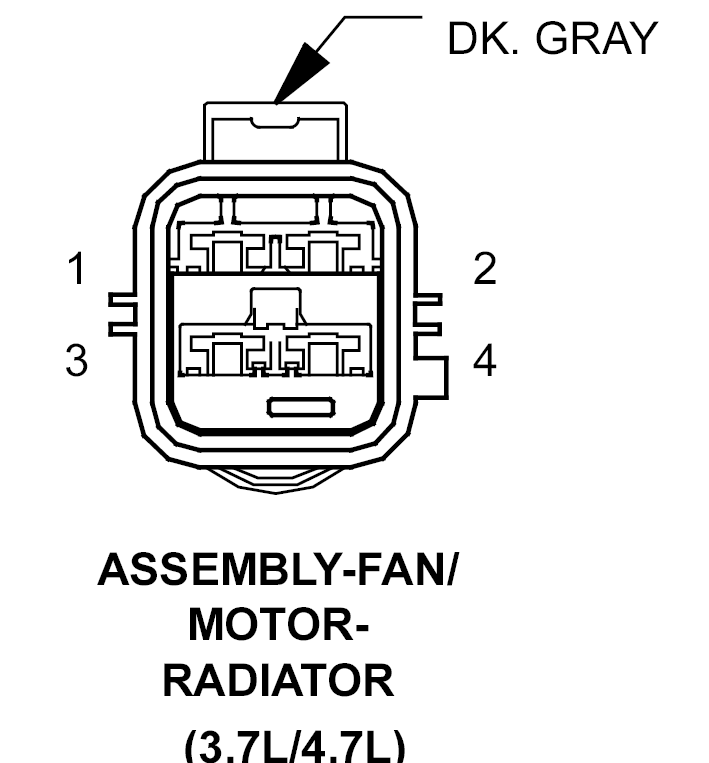

Fan Motor Radiator Assembly (3.7L/4.7L) Connector End View
ASSEMBLY-FAN/MOTOR-RADIATOR - DK. GRAY 4-WAY(3.7L/4.7L)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
N24 10DG/DB |
LOW SPEED RADIATOR FAN RELAY OUTPUT |
| 2 |
Z823 12BK/DG |
GROUND |
| 3 |
N23 10DB/DG |
HIGH SPEED RADIATOR FAN RELAY OUTPUT |
| 4 |
- |
- |
