Fuel Injector 1 (Gas) Connector End View

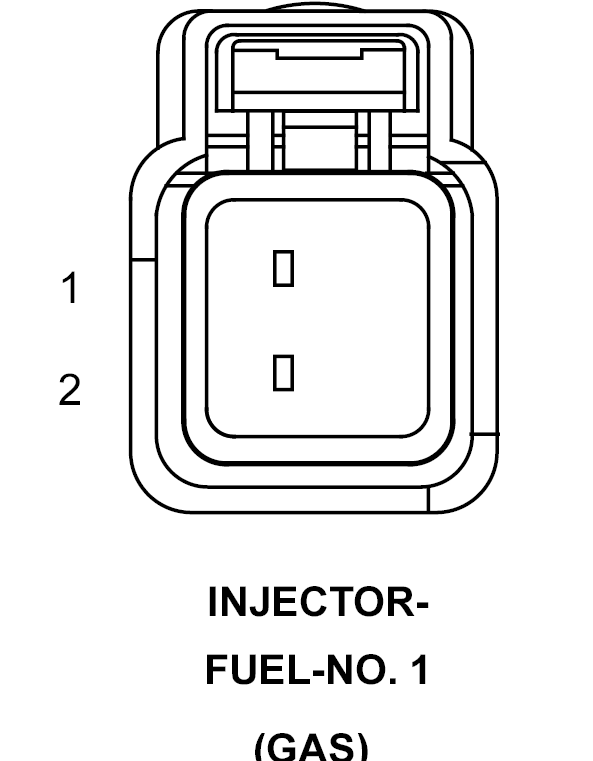

INJECTOR-FUEL-NO. 1 - 2-WAY(GAS)

GXK780155Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 K11 16BR/YL INJECTOR CONTROL NO. 1
2 F42 16DG/LG FUSED ASD RELAY OUTPUT
