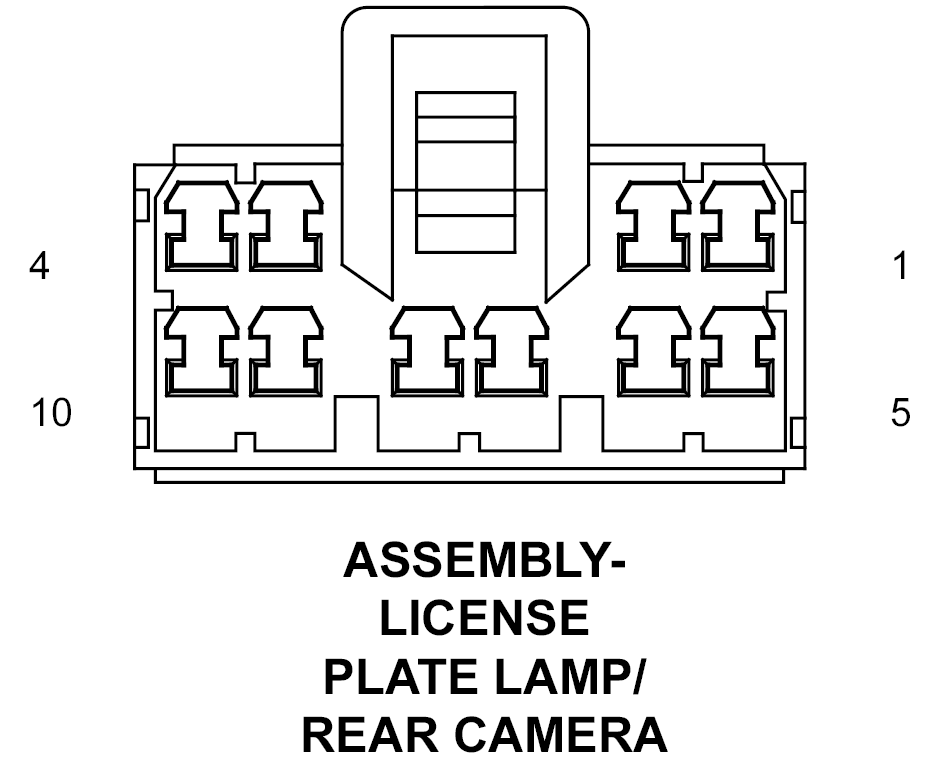

License Plate Lamp/Rear Camera Assembly (Component Side) Connector End View
ASSEMBLY-LICENSE PLATE LAMP/REAR CAMERA - 10-WAY(COMPONENT SIDE)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
WT |
FUSED PARK LAMP RELAY OUTPUT |
| 2 |
LG |
GROUND |
| 3 |
TN/LG |
FLIP-UP GLASS SWITCH SENSE |
| 4 |
- |
- |
| 5 |
BL |
LIFTGATE CHIME DRIVER |
| 6 |
BK |
CAMERA RETURN |
| 7 |
RD |
CAMERA SIGNAL |
| 8 |
- |
- |
| 9 |
- |
- |
| 10 |
TN |
BACKUP LAMP FEED |
