Automatic Transmission 545RFE - Electrical Diagnostics
>>
DTC Troubleshooting
>>
P0934-Line Pressure Sensor Circuit Low
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

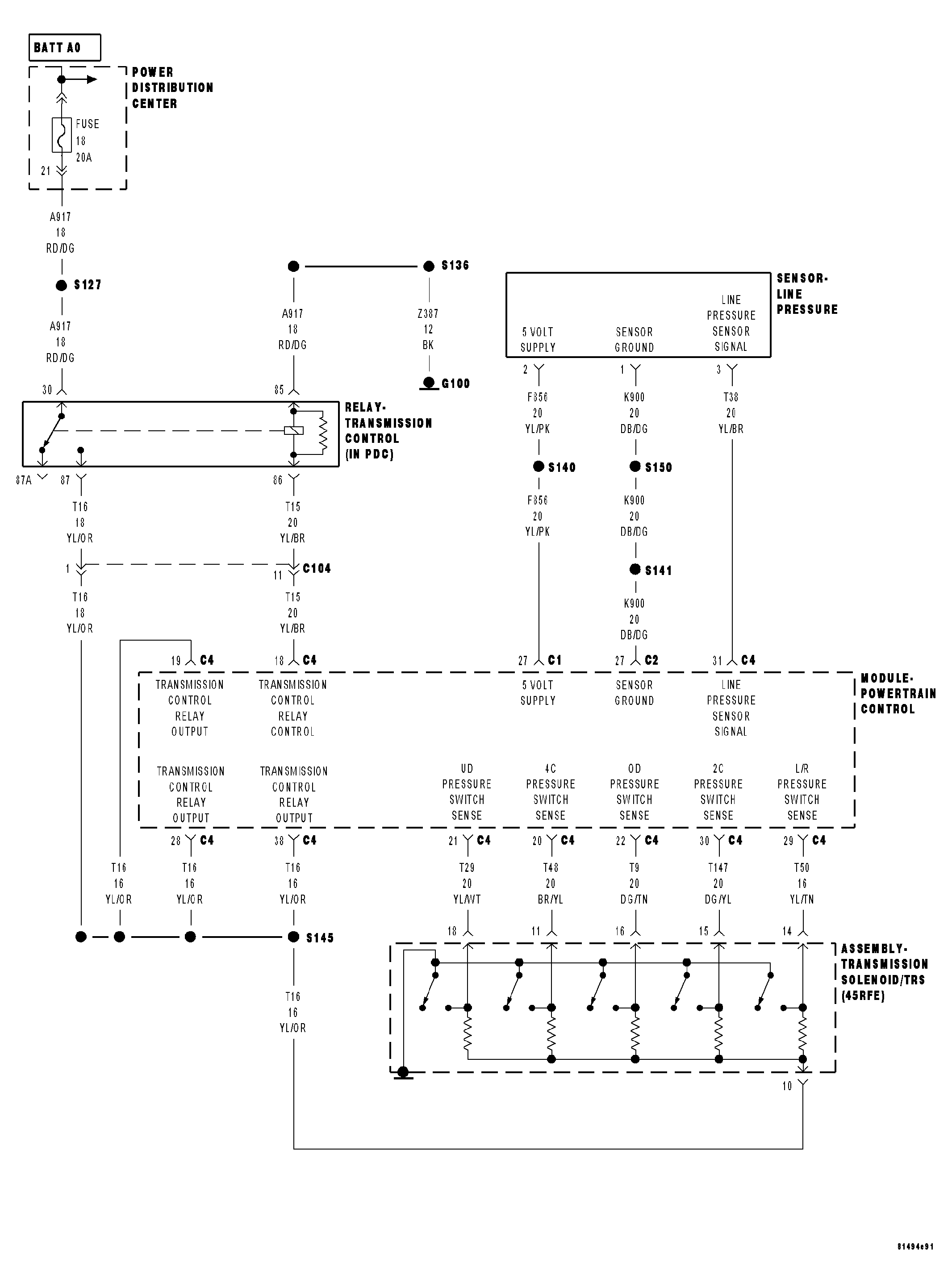

Fig 1: Transmission Solenoid Assembly Pressure Switch Circuit Schematic
Courtesy of CHRYSLER LLC
