Commander Base, 4.7 P, AWD
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Anti-Lock Brake System - Electrical Diagnostics
>>
Abs - Electrical Diagnostics
>>
DTC Troubleshooting
>>
C1047-Right Front Wheel Pressure Phase Monitoring
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

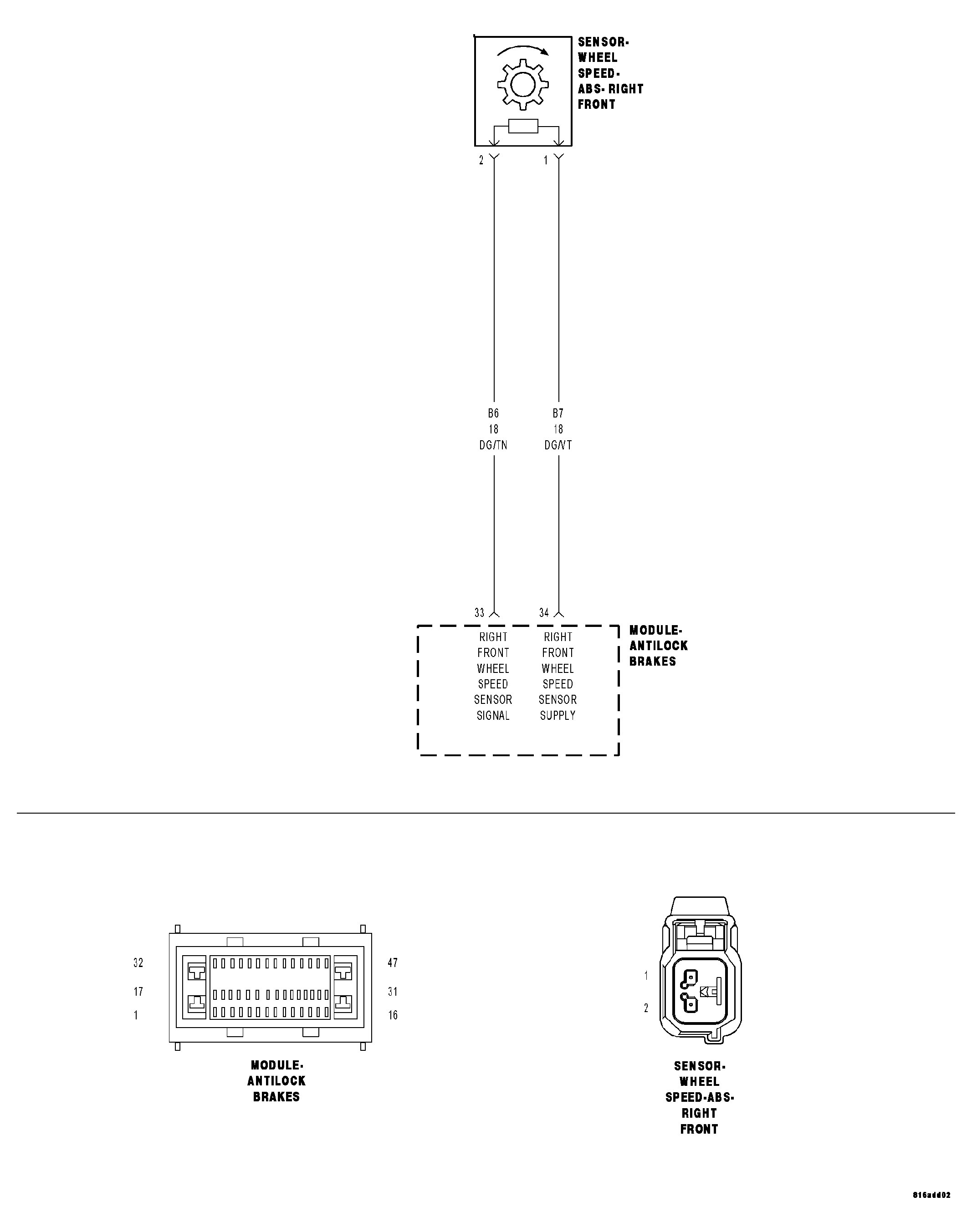

Fig 1: Right Front Wheel Speed Sensor Circuit Schematic
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
