C123B-Esp System Control Too Long
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

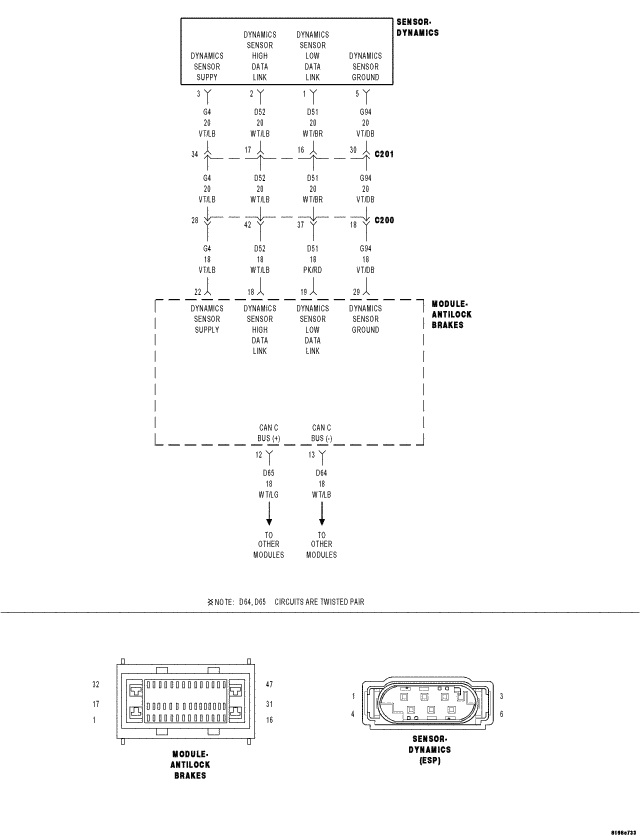

Fig 1: Dynamics Sensor Supply Voltage Circuit Schematic
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
