Jeep
>>
2007
>>
Commander Base, 4.7 P, AWD
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Anti-Lock Brake System - Electrical Diagnostics
>>
Adjustable Pedals
>>
DTC Troubleshooting
>>
B1D67-Adjustable Pedal Control Circuit Performance
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

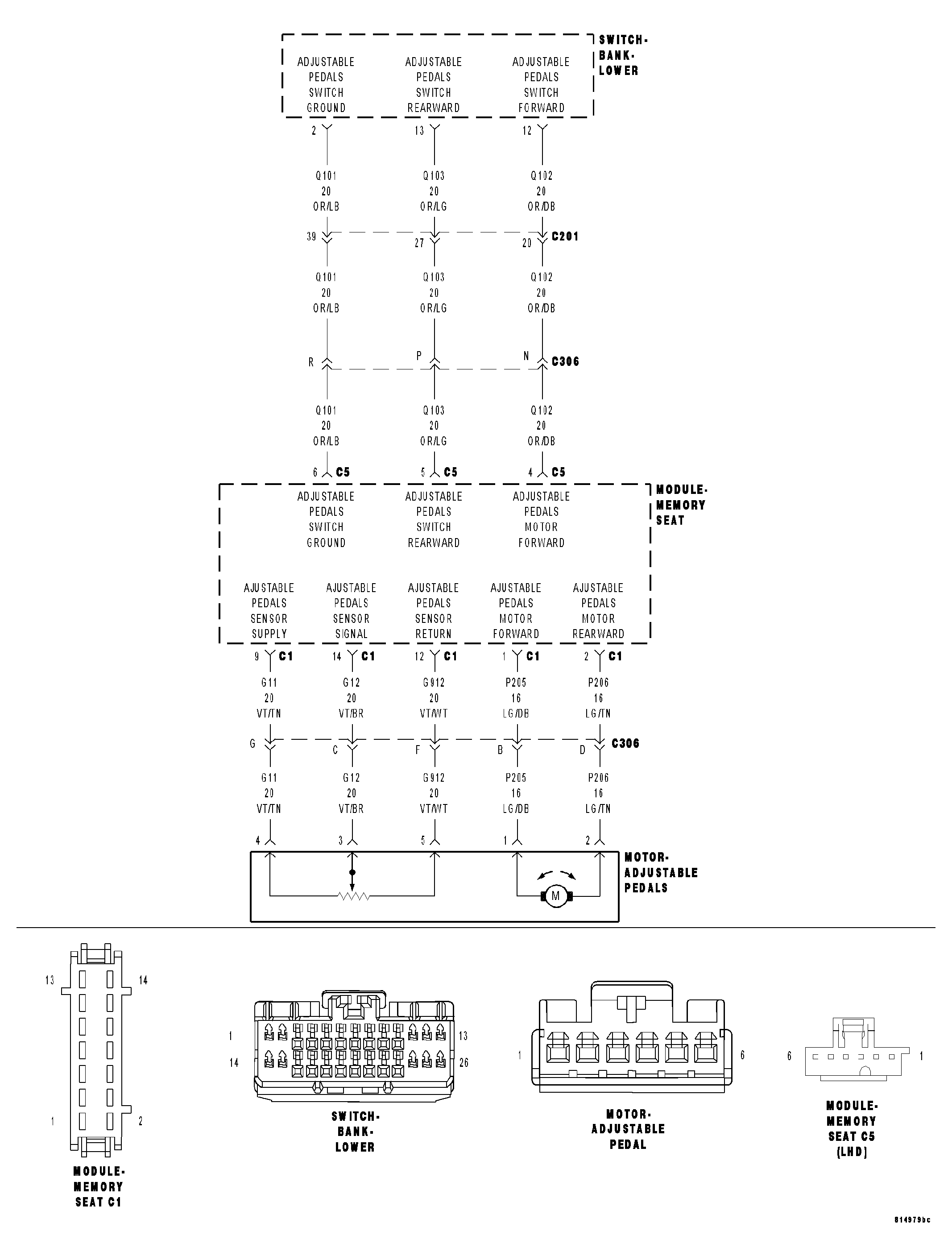

Fig 1: Adjustable Pedal Sensor Circuit Schematic
Courtesy of CHRYSLER LLC
