Fuel Injector 1 (Diesel) Connector End View

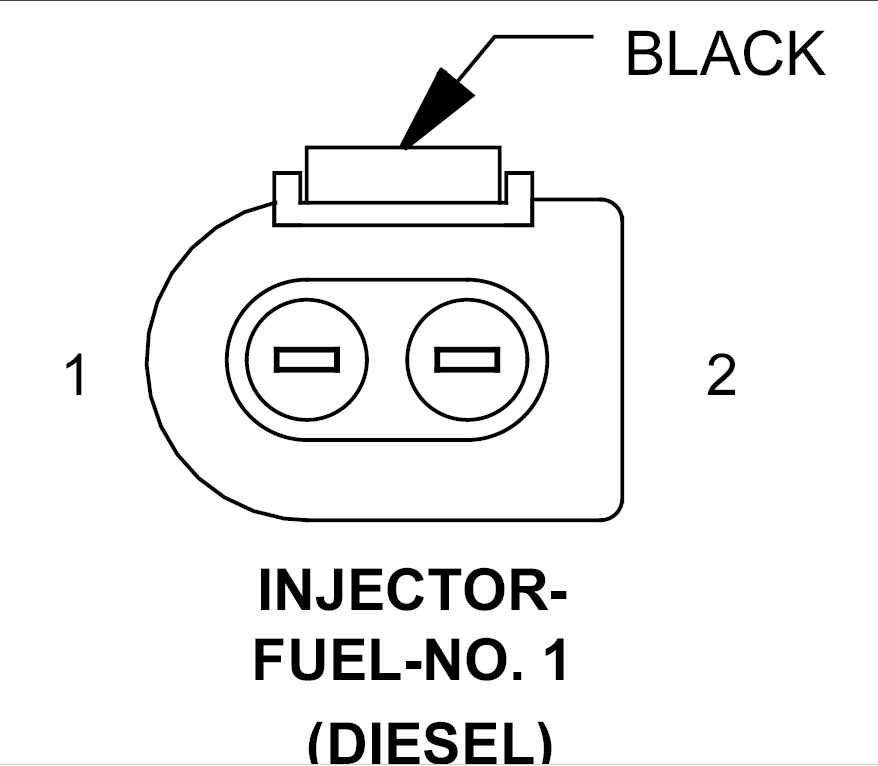

INJECTOR-FUEL-NO. 1 - 2-WAY(DIESEL)

GXK780154Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 K611 16BK/BL FUEL INJECTOR NO. 1 LOW-SIDE CONTROL
2 K11 16BL FUEL INJECTOR NO. 1 HIGH-SIDE CONTROL
