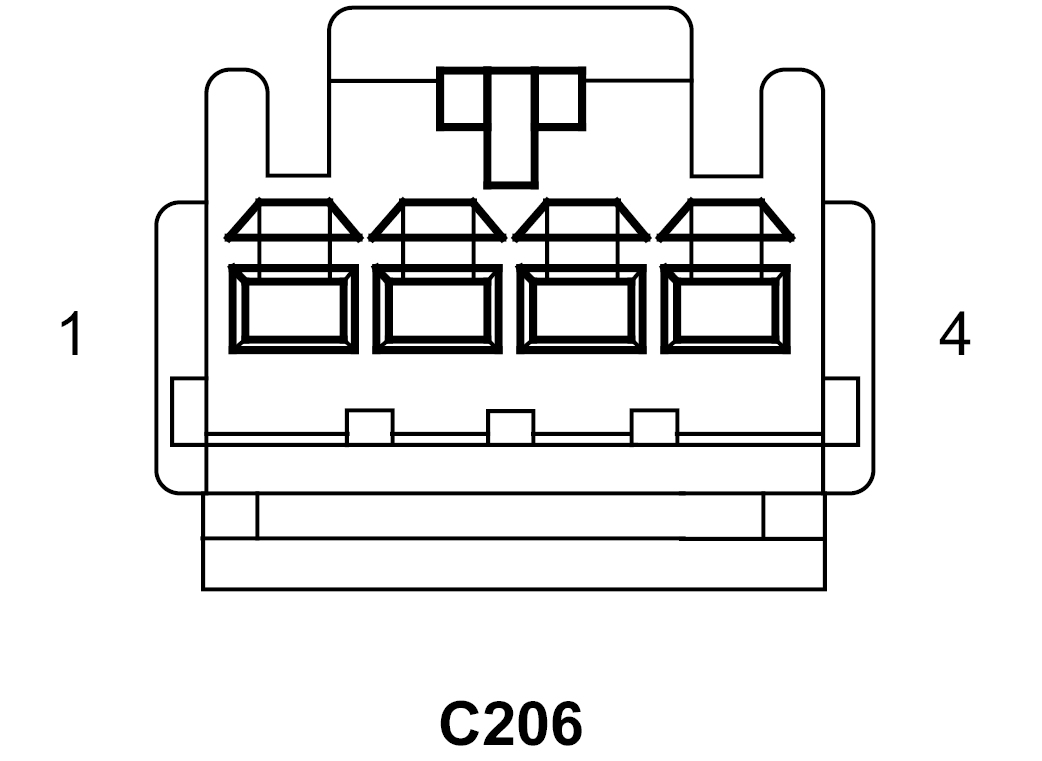

Inline Connector End View (C206 )
C206 - 4-WAYFEMALE
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
-
-
2
R82 20WT/LB
RIGHT FRONT IMPACT SENSOR GROUND
3
R80 20VT/LB
RIGHT FRONT IMPACT SENSOR SIGNAL
4
-
-
C206 - 4-WAYMALE
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
-
-
2
R82 20WT/LB
RIGHT FRONT IMPACT SENSOR GROUND
3
R80 20VT/LB
RIGHT FRONT IMPACT SENSOR SIGNAL
4
-
-
