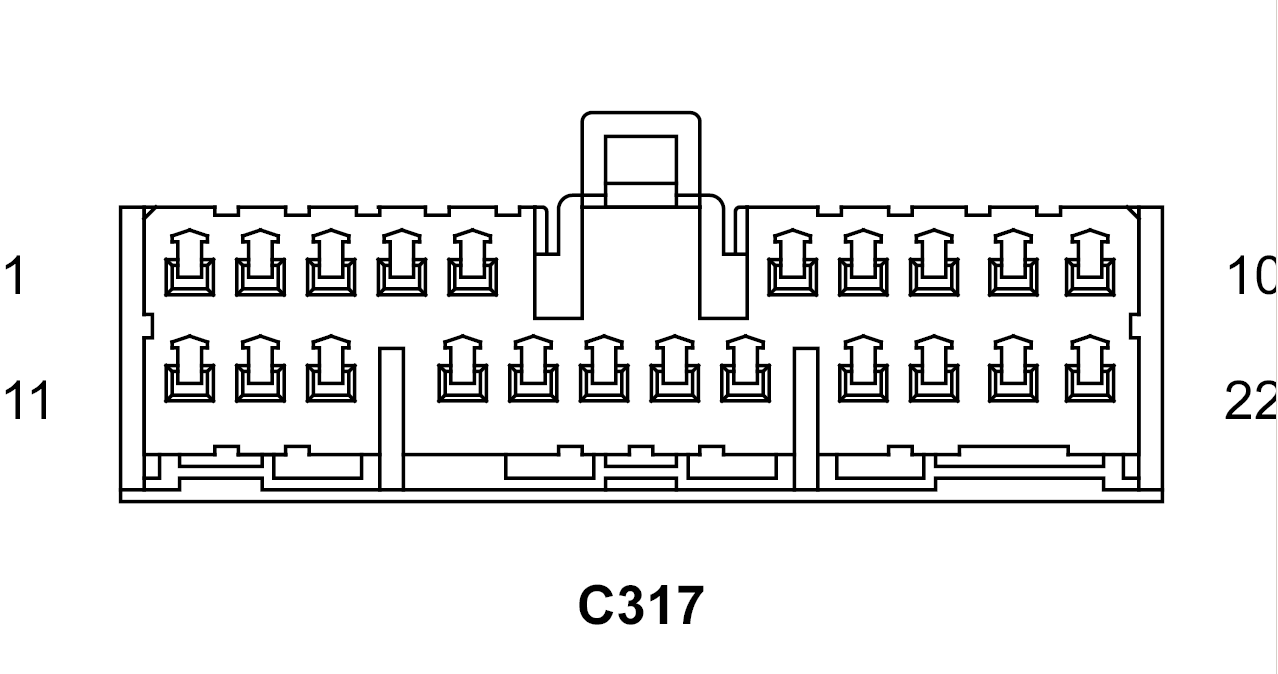

Inline Connector End View (C317 )

C317 - 22-WAYFEMALE

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	A931 20RD/WT	FUSED B(+)
2	D55 20WT/OR	CAN B BUS (+)
3	D54 20WT	CAN B BUS (-)
4	-	-
5	C17 20LB/DG	FUSED REAR WINDOW DEFOGGER RELAY OUTPUT
6	Z908 16BK	GROUND
7	P110 20LB/WT	FOLDING MIRROR RETURN
8	P699 20LG/YL	FOLDING MIRROR CONTROL
9	-	-
10	G75 20VT	LEFT FRONT DOOR AJAR SWITCH SENSE
10	G74 20VT/WT	RIGHT FRONT DOOR AJAR SWITCH SENSE
11	A929 16RD/LG	FUSED RUN/ACCESSORY DELAY RELAY OUTPUT
12	-	-
13	Q322 16LG/OR	PASSENGER WINDOW EXPRESS DOWN DRIVER
14	Q15 16OR/LB	WINDOW LOCK OUT SWITCH OUTPUT
15	Q990 20BK/LG	PASSENGER WINDOW SENSOR RETURN
16	P72 20TN/GY	PASSENGER MIRROR VERTICAL DRIVER
17	P76 20TN/LB	MIRROR COMMON DRIVER
18	P74 20TN/OR	PASSENGER MIRROR HORIZONTAL DRIVER
19	Q312 16DB/OR	PASSENGER WINDOW EXPRESS UP DRIVER
20	Q306 20OR/DB	PASSENGER WINDOW HALL SENSOR SUPPLY
21	Q304 20LG/OR	PASSENGER WINDOW HALL SENSOR B SIGNAL
22	Q302 20OR/LG	PASSENGER WINDOW HALL SENSOR A SIGNAL

C317 - 22-WAYMALE

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	A931 20RD/WT	FUSED B(+)
2	D55 20WT/OR	CAN B BUS (+)
3	D54 20WT	CAN B BUS (-)
4	-	-
5	C17 20LB/WT	FUSED REAR WINDOW DEFOGGER RELAY OUTPUT (EXCEPT MEMORY)
6	Z908 20BK	GROUND
7	-	-
8	-	-
9	-	-
10	-	-
11	A929 16RD/DB	FUSED RUN/ACCESSORY DELAY RELAY OUTPUT
12	-	-
13	Q322 16LG/OR	PASSENGER WINDOW EXPRESS DOWN DRIVER
14	Q15 20OR/LB	WINDOW LOCK OUT SWITCH OUTPUT
15	Z404 20BK
16	P72 20TN/GY	PASSENGER MIRROR VERTICAL DRIVER (EXCEPT MEMORY)
17	P76 20TN/LB	MIRROR COMMON DRIVER (EXCEPT MEMORY)
18	P74 20TN/OR	PASSENGER MIRROR HORIZONTAL DRIVER (EXCEPT MEMORY)
19	Q312 16DB/OR	PASSENGER WINDOW EXPRESS UP DRIVER
20	Q306 20OR/DB	PASSENGER WINDOW HALL SENSOR SUPPLY
21	Q304 20LG/OR	PASSENGER WINDOW HALL SENSOR B SIGNAL
22	Q302 20OR/LG	PASSENGER WINDOW HALL SENSOR A SIGNAL
