Multi Displacement System Cyl Solenoid 1 (5.7L) Connector End View

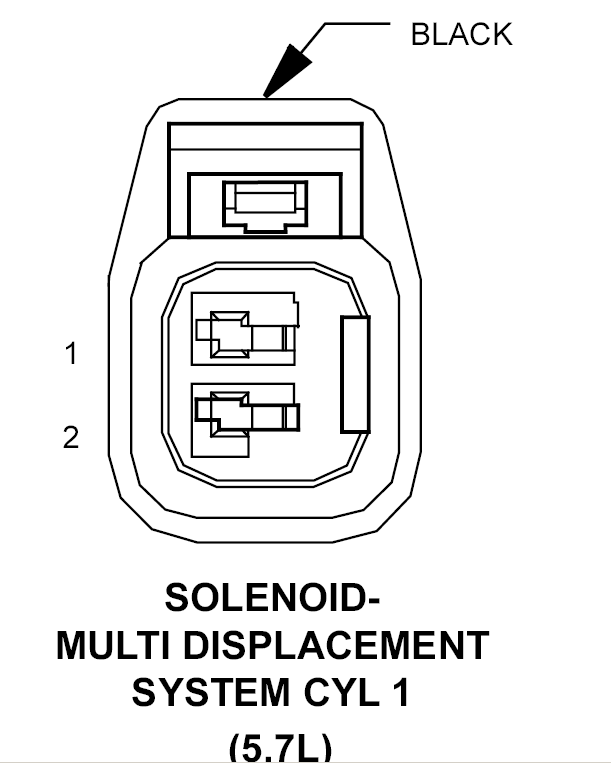

SOLENOID-MULTI DISPLACEMENT SYSTEM CYL 1 - BLACK 2-WAY(5.7L)

GXK780397Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 K451 20BR/WT MDS SOL CONTROL NO. 1
2 Z42 20BK/LG GROUND
