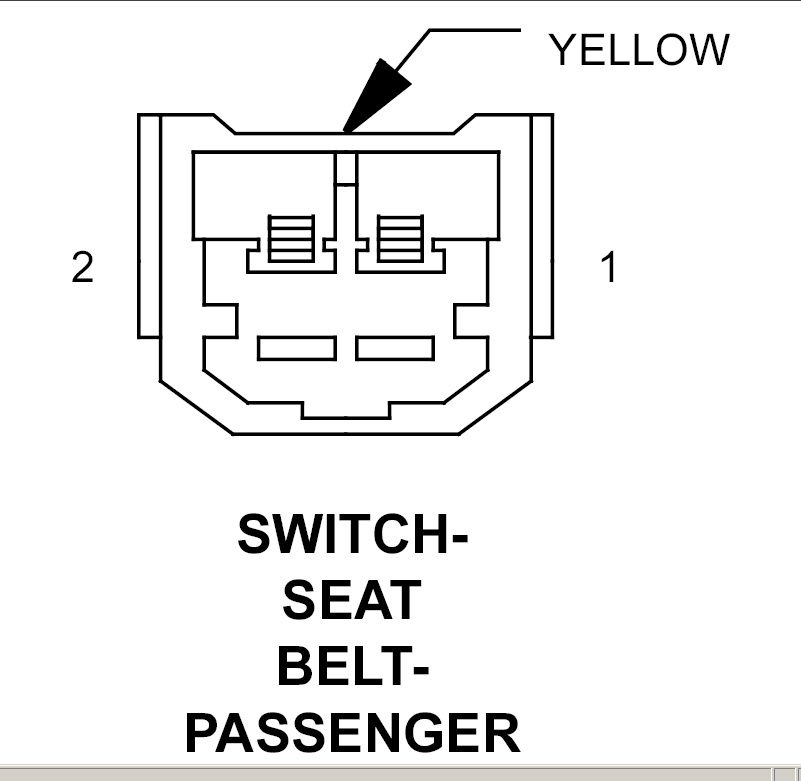

Passenger Seat Belt Switch Connector End View
SWITCH-SEAT BELT-PASSENGER - YELLOW 2-WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
G210 20VT/BR
PASSENGER SEAT BELT SWITCH SENSE
2
Z911 20BK
GROUND
Courtesy of CHRYSLER CORP.
