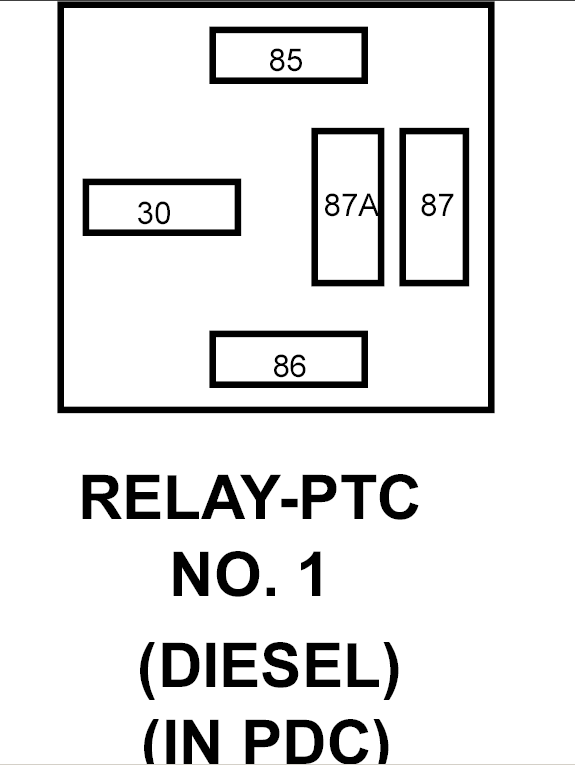

Positive Temperature Coefficient Relay 1 (Diesel) Connector End View
RELAY-PTC NO. 1 - 0-WAY(DIESEL)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 30 |
A923 10RD |
FUSED B(+) |
| 85 |
K360 20GY/BR |
PTC NO. 1 RELAY CONTROL |
| 86 |
A15 16RD/TN |
FUSED ASD RELAY OUTPUT |
| 87 |
N113 10DB/OR |
PTC NO. 1 RELAY OUTPUT |
| 87A |
- |
- |
