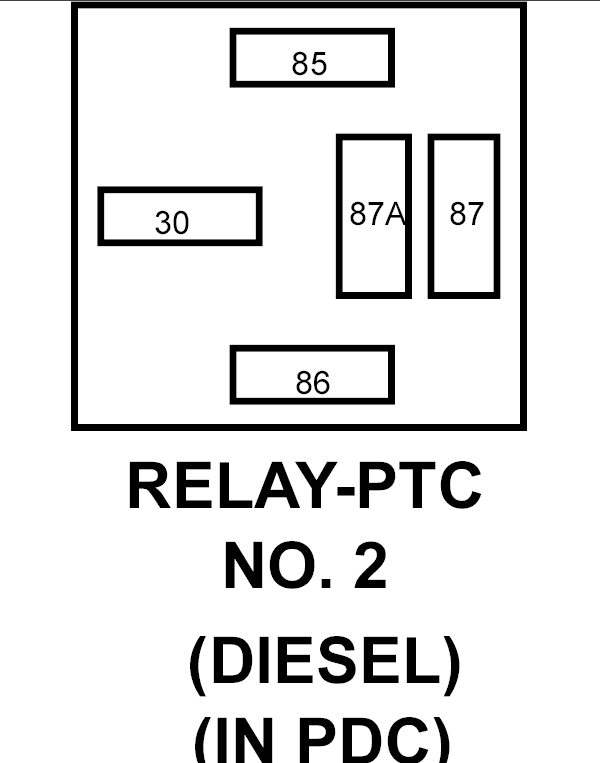

Positive Temperature Coefficient Relay 2 (Diesel) Connector End View
RELAY-PTC NO. 2 - 0-WAY(DIESEL)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 30 |
A915 10RD |
FUSED B(+) |
| 85 |
K361 20BR/WT |
PTC NO. 2 RELAY CONTROL |
| 86 |
A15 16RD/TN |
FUSED ASD RELAY OUTPUT |
| 87 |
N114 10DB/LB |
PTC NO. 2 RELAY OUTPUT |
| 87A |
- |
- |
