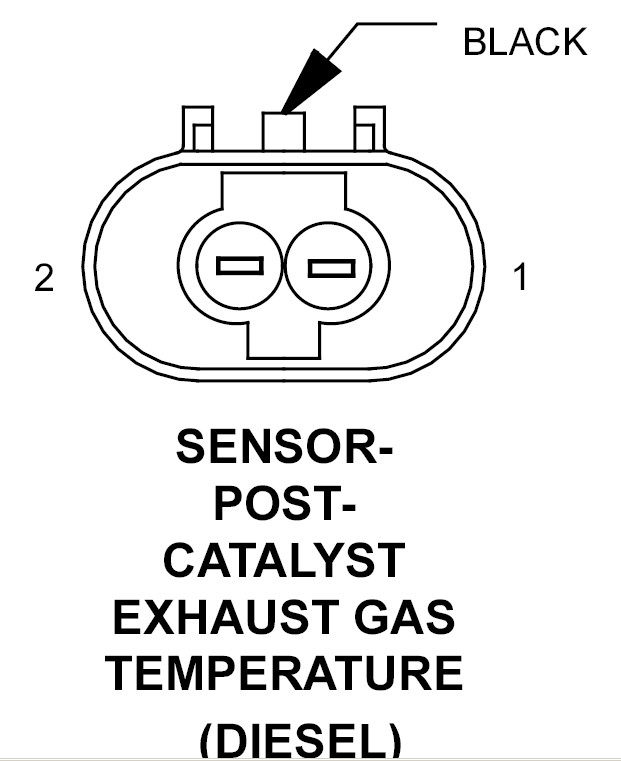

Post Catalyst Exhaust Gas Temperature Sensor (Diesel) Connector End View
SENSOR-POST-CATALYST EXHAUST GAS TEMPERATURE - BLACK 2-WAY(DIESEL)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
K915 20BR/WT |
POST-CATALYST EXHAUST GAS TEMPERATURE GROUND |
| 2 |
K353 20YL/WT |
POST-CATALYST EXHAUST GAS TEMPERATURE SIGNAL |
