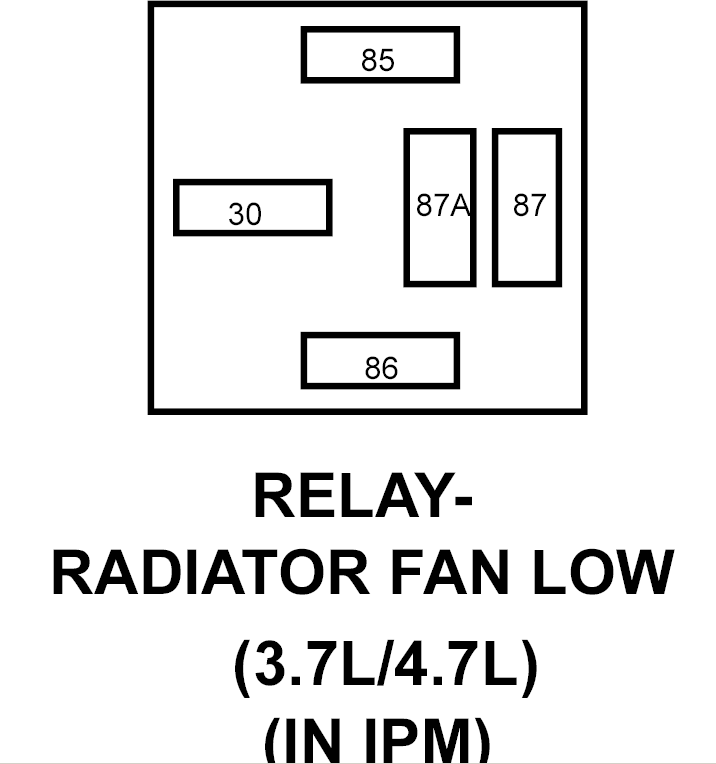

Radiator Fan Low Relay (3.7L/4.7L) Connector End View
RELAY-RADIATOR FAN LOW - 0-WAY(3.7L/4.7L)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 30 |
A16 10RD/BR |
FUSED B(+) |
| 85 |
N201 20DB/LG |
LOW SPEED RADIATOR FAN RELAY CONTROL |
| 86 |
A16 10RD/BR |
FUSED B(+) |
| 87 |
N24 10DG/DB |
LOW SPEED RADIATOR FAN RELAY OUTPUT |
| 87A |
- |
- |
