Sensor-Engine Coolant Temperature: Installation: Installation-3.7L

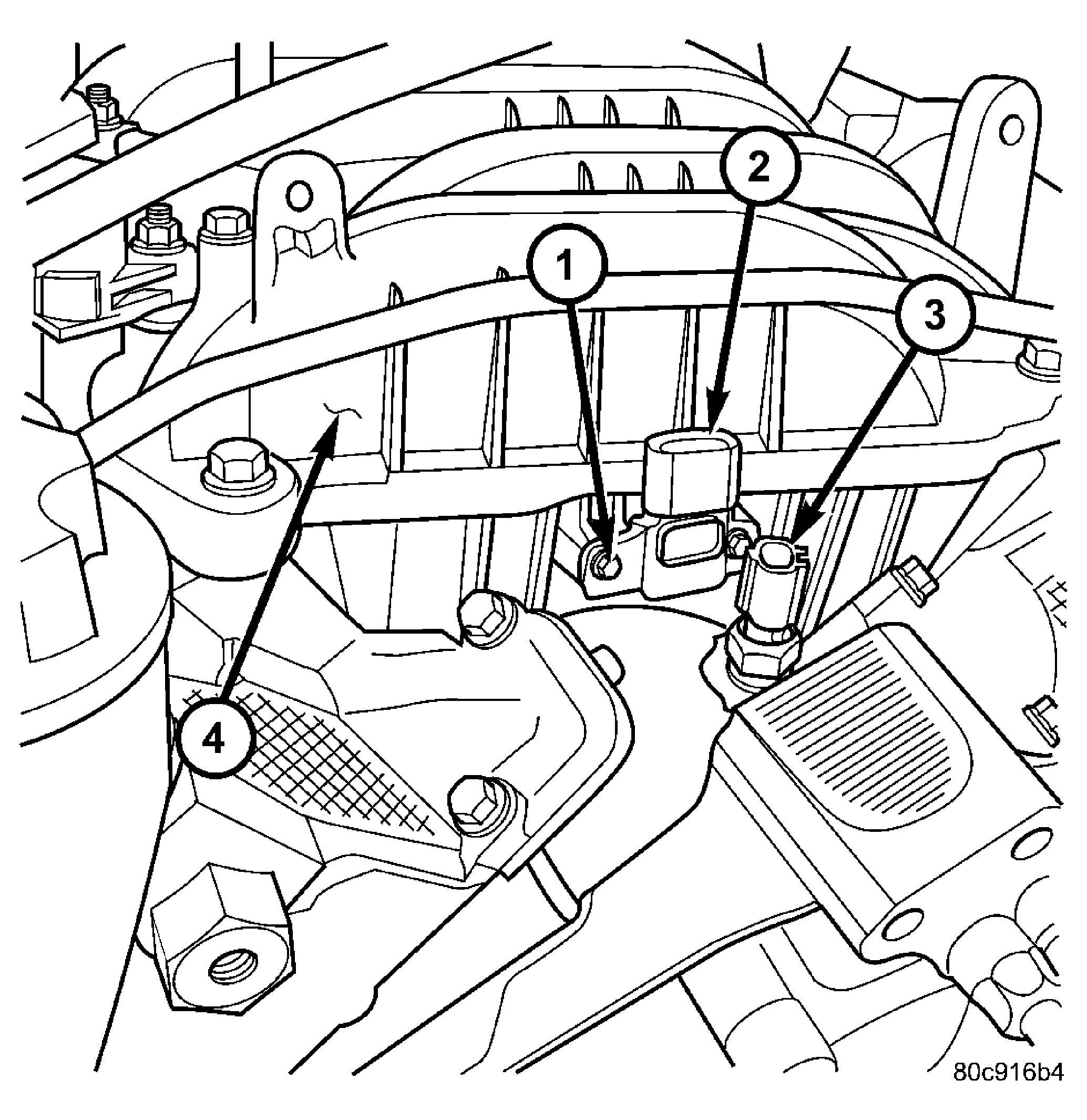

Fig 1: Manifold Absolute Pressure Sensor / ECT Sensor - 3.7L

Courtesy of CHRYSLER LLC

1 - MOUNTING SCREWS

2 - MAP SENSOR

3 - ECT SENSOR

4 - FRONT OF INTAKE MANIFOLD

1. Apply thread sealant to sensor threads.
2. Install sensor to engine.
3. Tighten sensor to 11 N.m (8 ft. lbs.) torque.
4. Connect electrical connector to sensor.
5. Replace any lost engine coolant. See STANDARD PROCEDURE .
