Automatic Transmission 45/545RFE

Fig 1: 545RFE Bearing Orientation
GC0051662Courtesy of CHRYSLER LLC
1 - THRUST BEARING NO. 1 8 - THRUST BEARING NO. 8
2 - THRUST BEARING NO. 2 9 - THRUST BEARING NO. 9
3 - THRUST BEARING NO. 3 10 - THRUST BEARING NO. 10
4 - THRUST BEARING NO. 4 11 - THRUST BEARING NO. 11
5 - THRUST BEARING NO. 5 12 - THRUST BEARING NO. 12
6 - THRUST BEARING NO. 6 13 - OUTPUT SHAFT BEARING
7 - THRUST BEARING NO. 7 -
Fig 2: Removing Manual Shaft Lever
GC0005220Courtesy of CHRYSLER LLC
1 - MANUAL SHAFT LEVER
  1. Drain fluid from transmission.
  2. Clean exterior of transmission with suitable solvent or pressure washer.
  3. Remove the torque converter from the transmission.
  4. Remove the manual shift lever (1) from the transmission. See Fig 2.
    Fig 3: Locating Input Speed, Output Speed and Line Pressure Sensors
    GC0005202Courtesy of CHRYSLER LLC
    1 - OUTPUT SPEED SENSOR
    2 - LINE PRESSURE SENSOR
    3 - INPUT SPEED SENSOR
  5. Remove the input (3), output (1), and line pressure sensors (2) from the transmission case. See Fig 3
  6. Inspect the ends of the sensors for debris, which may indicate the nature of the transmission failure.

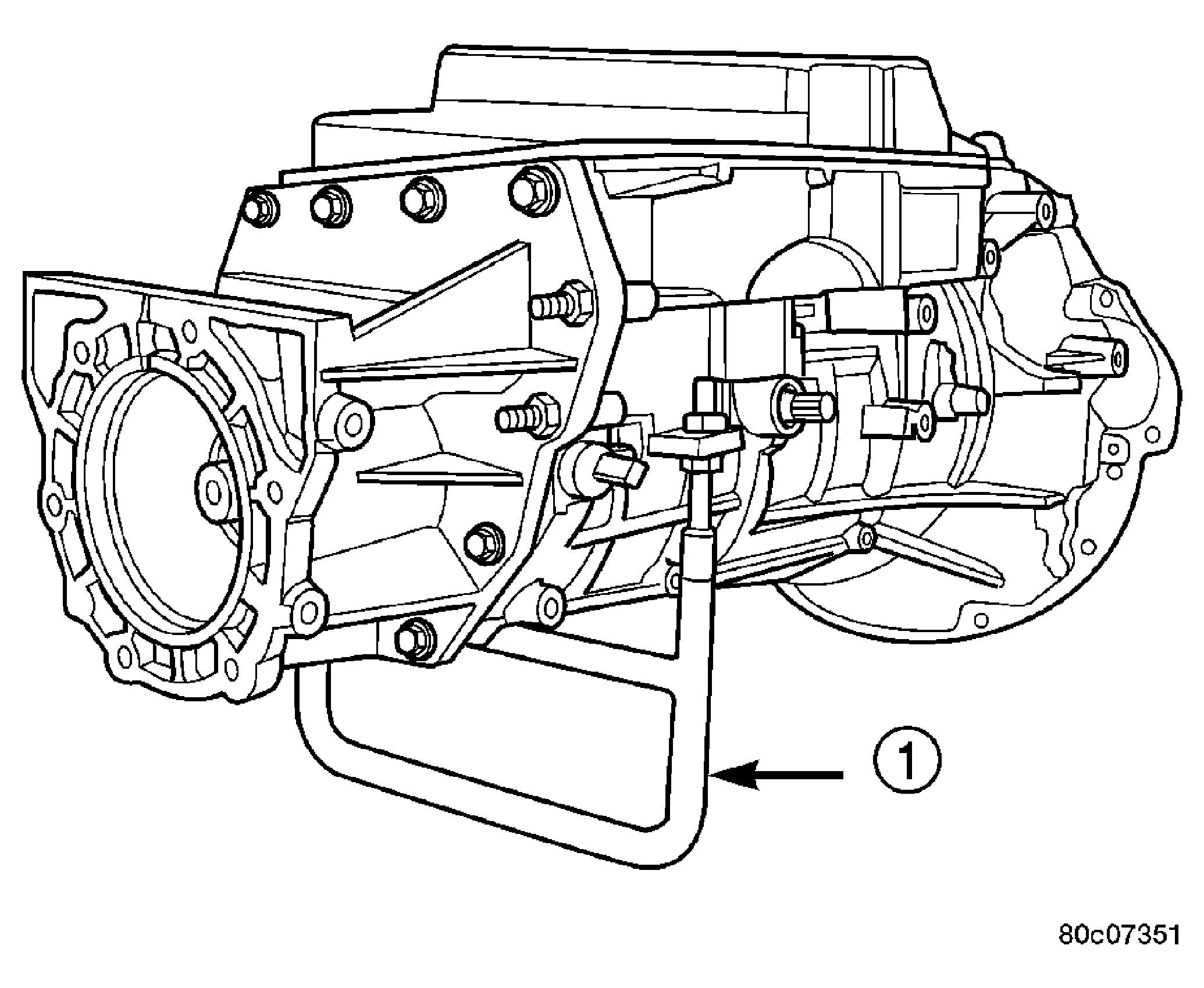

    Fig 4: Support Stand Tool 8257
    GC0005203Courtesy of CHRYSLER LLC
    1 - TOOL 8257
  7. Install Support Stand 8257 (1) onto the transmission case. See Fig 4
    Fig 5: Measuring Input Shaft End Play
    GC0005204Courtesy of CHRYSLER LLC
    1 - TOOL 8266
    2 - TOOL C-3339
  8. Using Adapter 8266-1 from End-Play Tool Set 8266 (1) and Dial Indicator C-3339 (2), measure and record the input shaft end-play. See Fig 5.
    NOTE: When measuring the input shaft end-play, two "stops" will be felt. When the input shaft is pushed inward and the dial indicator zeroed, the first "stop" felt when the input shaft is pulled outward is the movement of the input shaft in the input clutch housing hub. This value should not be included in the end-play measured value and therefore must be recorded and subtracted from the dial indicator reading.
    Fig 6: Measuring Output Shaft End Play
    GC0005205Courtesy of CHRYSLER LLC
    1 - TOOL 10065
    2 - TOOL 8266-20
    3 - TOOL C-3339
  9. Remove the bolts holding the transmission extension/adapter housing to the transmission case.
  10. Remove the extension/adapter housing from the transmission case.
  11. Using Alignment Plate 8261 (1), Adapter 8266-17 from End-Play Tool Set 8266 (2) and Dial Indicator C-3339 (3), measure and record the output shaft end-play. See Fig 6.
    Fig 7: Identifying Valve Body Assembly
    GC0051663Courtesy of CHRYSLER LLC
    1 - PRIMARY OIL FILTER
    2 - COOLER RETURN FILTER
    3 - VALVE BODY
  12. Remove the bolts holding the transmission oil pan to the transmission case.
  13. Remove the transmission oil pan from the transmission case.
  14. Remove the primary oil filter (1) and the oil cooler return filter (2).
    Fig 8: Removing/Installing Valve Body Assembly
    GC0005207Courtesy of CHRYSLER LLC
    1 - VALVE BODY TO CASE BOLT (6)
  15. Remove the bolts (1) holding the valve body to the transmission case. See Fig 8.
  16. Remove the valve body from the transmission case.
    Fig 9: Front Cover
    GC0051664Courtesy of CHRYSLER LLC
    1 - Front Cover
    2 - Front Cover O-Ring
    3 - Snap Ring
    4 - Front Cover Seal
  17. Remove the outer snap-ring (3) securing the transmission front cover (1) into the transmission case. See Fig 9.
  18. Reaching through a case opening in the valve body area with a long blunted tool, remove the transmission front cover (1) from the transmission case. See Fig 9.
    Fig 10: Removing/Installing Oil Pump
    GC0005209Courtesy of CHRYSLER LLC
    1 - OIL PUMP TO CASE BOLT (6)
    2 - OIL PUMP
  19. Remove the bolts (1) holding the oil pump into the transmission case. See Fig 10.
  20. Remove the oil pump (2). Hold inward on the input shaft to prevent pulling the input clutch assembly with the oil pump. See Fig 10.
    CAUTION: If the input shaft is not held during oil pump removal, the input clutch assembly will attempt to move forward with the oil pump and the numbers 2, 3, or 4 bearings inside the input clutch assembly may become dislodged.
    Fig 11: Removing/Installing Input Clutch Assembly
    GC0005210Courtesy of CHRYSLER LLC
    1 - THRUST BEARING NUMBER 5
    2 - THRUST PLATE (SELECT)
    3 - INPUT CLUTCH ASSEMBLY
    4 - THRUST BEARING NUMBER 1
  21. Remove the number 1 thrust bearing (4) from the input clutch assembly. See Fig 11.
  22. Remove the input clutch assembly (3) from the transmission case. See Fig 11.
  23. Remove the number 5 thrust bearing (1) and selective thrust plate (2) from the input clutch assembly (3), or the 4C clutch retainer/bulkhead. See Fig 11.
    Fig 12: Removing/Installing 4C Clutch Retainer/Bulkhead
    GC0005219Courtesy of CHRYSLER LLC
    1 - SNAP-RING
    2 - 4C CLUTCH RETAINER/BULKHEAD
  24. Remove the 4C clutch retainer/bulkhead tapered snap-ring (1) from the transmission case. See Fig 12.
  25. Remove the 4C clutch retainer/bulkhead (2) from the transmission case. See Fig 12.
    Fig 13: Removing/Installing 2C Clutch Pack
    GC0005212Courtesy of CHRYSLER LLC
    1 - SNAP-RING
    2 - PLATE
    3 - DISC
    4 - REACTION PLATE
  26. Remove the front 2C clutch pack snap-ring (1) from the transmission case. See Fig 13.
  27. Remove the 2C clutch pack (2, 3, 4) from the transmission case. See Fig 13.
    Fig 14: Removing/Installing Reaction Annulus and Carrier
    GC0005213Courtesy of CHRYSLER LLC
    1 - THRUST BEARING NUMBER 8 5 - THRUST BEARING NUMBER 7
    2 - THRUST BEARING NUMBER 9 6 - THRUST PLATE (SELECT)
    3 - REACTION PLANETARY CARRIER 7 - THRUST BEARING NUMBER 6
    4 - REACTION SUN GEAR 8 - REACTION ANNULUS
  28. Remove the rear selective thrust plate (6) and number 6 thrust bearing (7) from the reaction annulus (8). See Fig 14.
  29. Remove the reaction annulus (8) from the reaction planetary carrier (3). See Fig 14.
  30. Remove the number 7 thrust bearing (5). See Fig 14.
  31. Remove the reaction sun gear (4). See Fig 14.
  32. Remove the number 8 thrust bearing (1) from the reaction planetary carrier (3). See Fig 14.
  33. Remove the reaction planetary carrier (3). See Fig 14. Note that this planetary gear set has three pinion gears.
  34. Remove the number 9 thrust bearing (2) from the reverse planetary gear set. See Fig 14.
    Fig 15: Removing/Installing Park Sprag Snap Ring
    GC0005214Courtesy of CHRYSLER LLC
    1 - SNAP-RING
  35. Remove the snap-ring (1) holding the park sprag gear onto the output shaft. See Fig 15.
    Fig 16: Removing/Installing Park Sprag Gear
    GC0005215Courtesy of CHRYSLER LLC
    1 - PARK SPRAG GEAR
  36. Remove the park sprag gear (1) from the output shaft. See Fig 16.
    Fig 17: Removing/Installing Input/Reverse Planetary Assembly
    GC0005216Courtesy of CHRYSLER LLC
    1 - INPUT/REVERSE PLANETARY ASSEMBLY
    2 - BEARING NUMBER 9
    3 - BEARING NUMBER 12
  37. Remove the input/reverse planetary assembly (1). See Fig 17.
  38. Remove the number 12 thrust bearing (3) from the input/reverse planetary assembly (1). See Fig 17.
    Fig 18: Removing/Installing Low/Reverse Clutch Retainer
    GC0005217Courtesy of CHRYSLER LLC
    1 - LOW/REVERSE OVERRUNNING CLUTCH ASSEMBLY
    2 - SNAP-RING
  39. Remove the snap-ring (2) holding the low/reverse clutch retainer (1) into the transmission case. See Fig 18.
  40. Remove the low/reverse clutch retainer (1) from the transmission case. See Fig 18.
    Fig 19: Removing/Installing Manual Shaft/Park Lock Components
    GC0005218Courtesy of CHRYSLER LLC
    1 - GUIDE
    2 - SNAP-RING
    3 - SHAFT
    4 - SPRING
    5 - PARK PAWL
    6 - MANUAL SHAFT/LEVER
    7 - PARK ROD
  41. Remove the park rod (7) and e-clip. See Fig 19.
  42. Remove the park rod guide snap-ring (2). See Fig 19.
  43. Remove the park rod guide (1). See Fig 19.
  44. Remove the park pawl pivot shaft (3), park pawl (5), and spring (4). See Fig 19
  45. Remove the manual selector shaft (6). See Fig 19.
  46. Remove the manual selector shaft seal.
  47. Remove the dipstick tube seal.
