Housing, Transmission, Rear Extension: Assembly

Special Tools:

Courtesy of CHRYSLER LLC	8695 - Installer, Seal
Courtesy of CHRYSLER LLC	C-4171 - Driver Handle, Universal
Courtesy of CHRYSLER LLC	6756 - Receiver, Ball Joint
Courtesy of CHRYSLER LLC	C-3281 - Holder, Flange

1. Clean the extension housing seal bore in the extension housing of any residue or particles remaining from the original seal.

   Courtesy of CHRYSLER LLC

2. Install new oil seal in the extension housing (1) using Installer, Seal 8695  (2) and Driver Handle, Universal C-4171  (3).

   Courtesy of CHRYSLER LLC

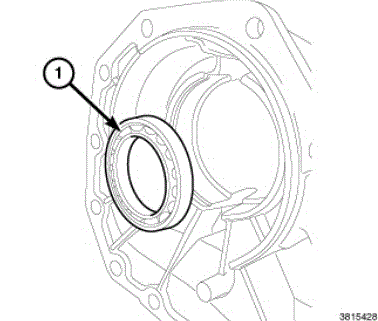

3. Install the center bearing (1).

   Courtesy of CHRYSLER LLC

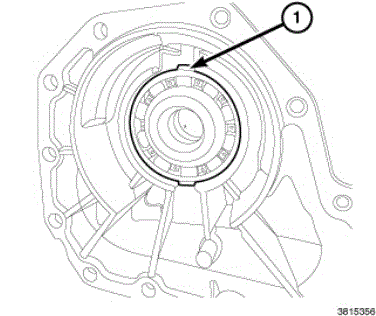

4. Install the spacer (if equipped) and center bearing snap ring (1).

   Courtesy of CHRYSLER LLC

5. Using Receiver, Ball Joint 6756  (1) and press, install the bearing (2) onto the shaft (3).

   Courtesy of CHRYSLER LLC

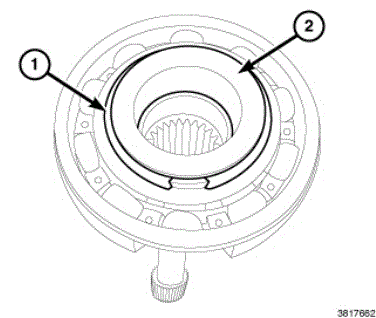

6. Install snap ring (1) on shaft (2).

   Courtesy of CHRYSLER LLC

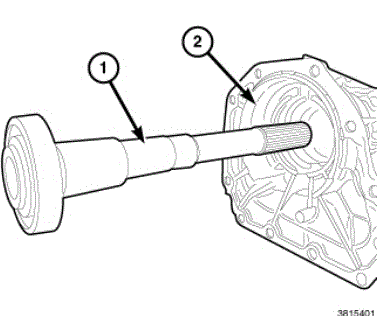

7. Install the shaft (1) into the extension housing (2).

   Courtesy of CHRYSLER LLC

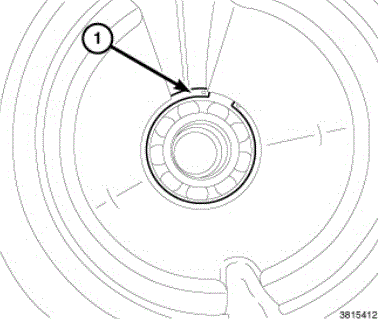

8. Install the bearing snap-ring (1) into the extension housing.

   Courtesy of CHRYSLER LLC

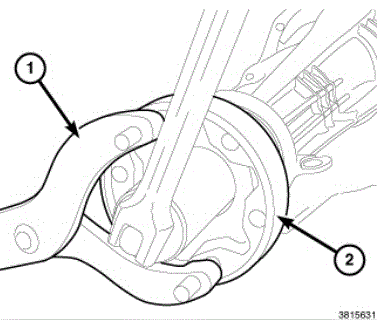

9. Install flange (2) and using Holder, Flange C-3281  (1) install flange nut and tighten to 149 N.m (110 ft lbs.)
