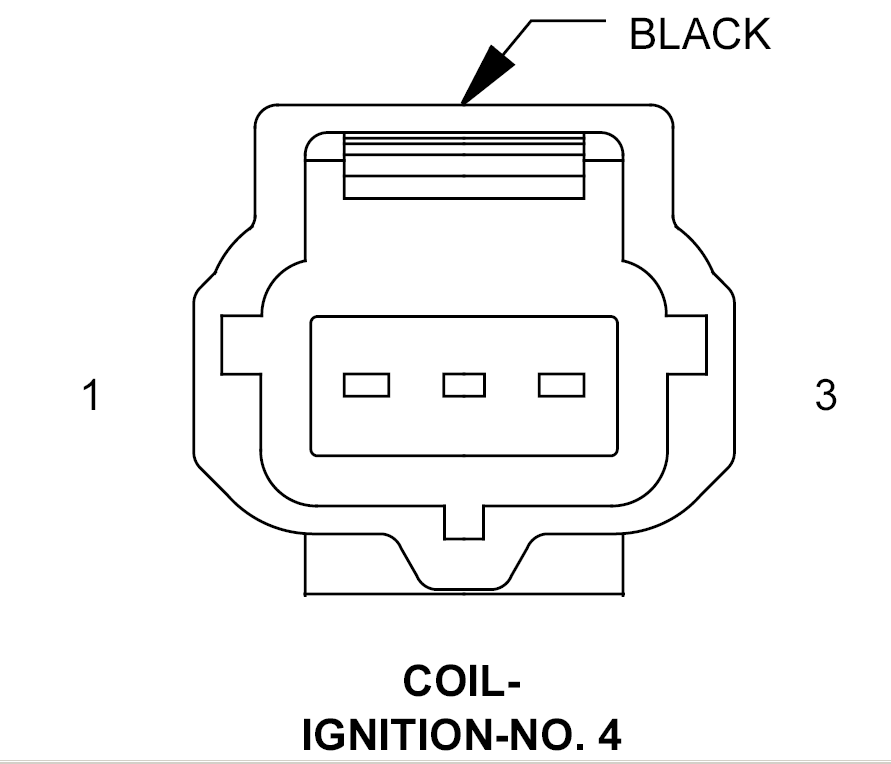

Ignition Coil 4 Connector End View
COIL-IGNITION-NO. 4 - BLACK 3-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
K15 16DB |
COIL CONTROL NO. 4 |
| 2 |
A15 16RD/TN |
FUSED ASD RELAY OUTPUT |
| 3 |
- |
- |
