*No Response From HFM (Hands Free Module): Notes

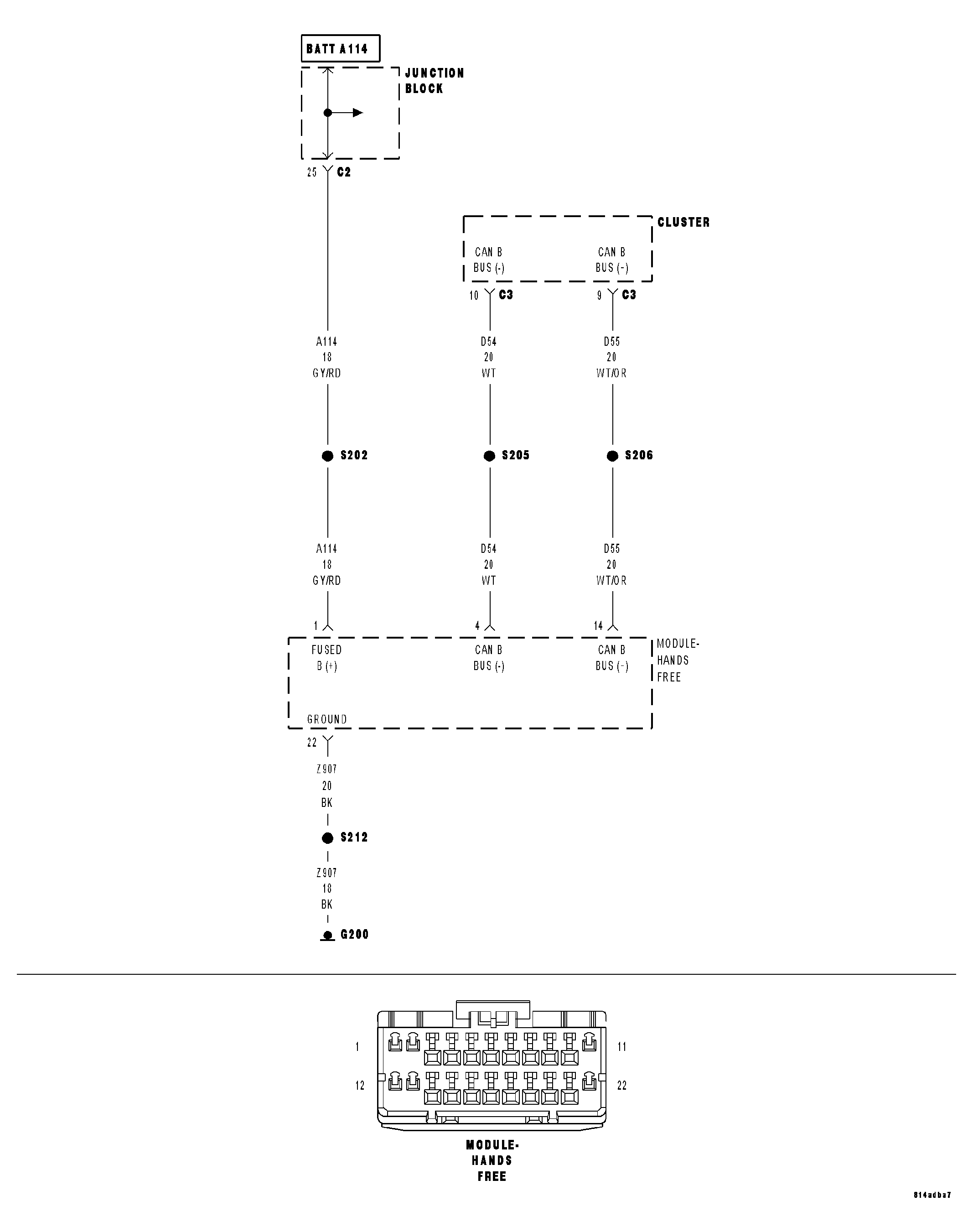

Fig 1: Hands Free Module Power, Ground & Communication

GC0027530

Courtesy of CHRYSLER LLC
