B1436-Voice Recognition/Phone Switch Input Circuit Low
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

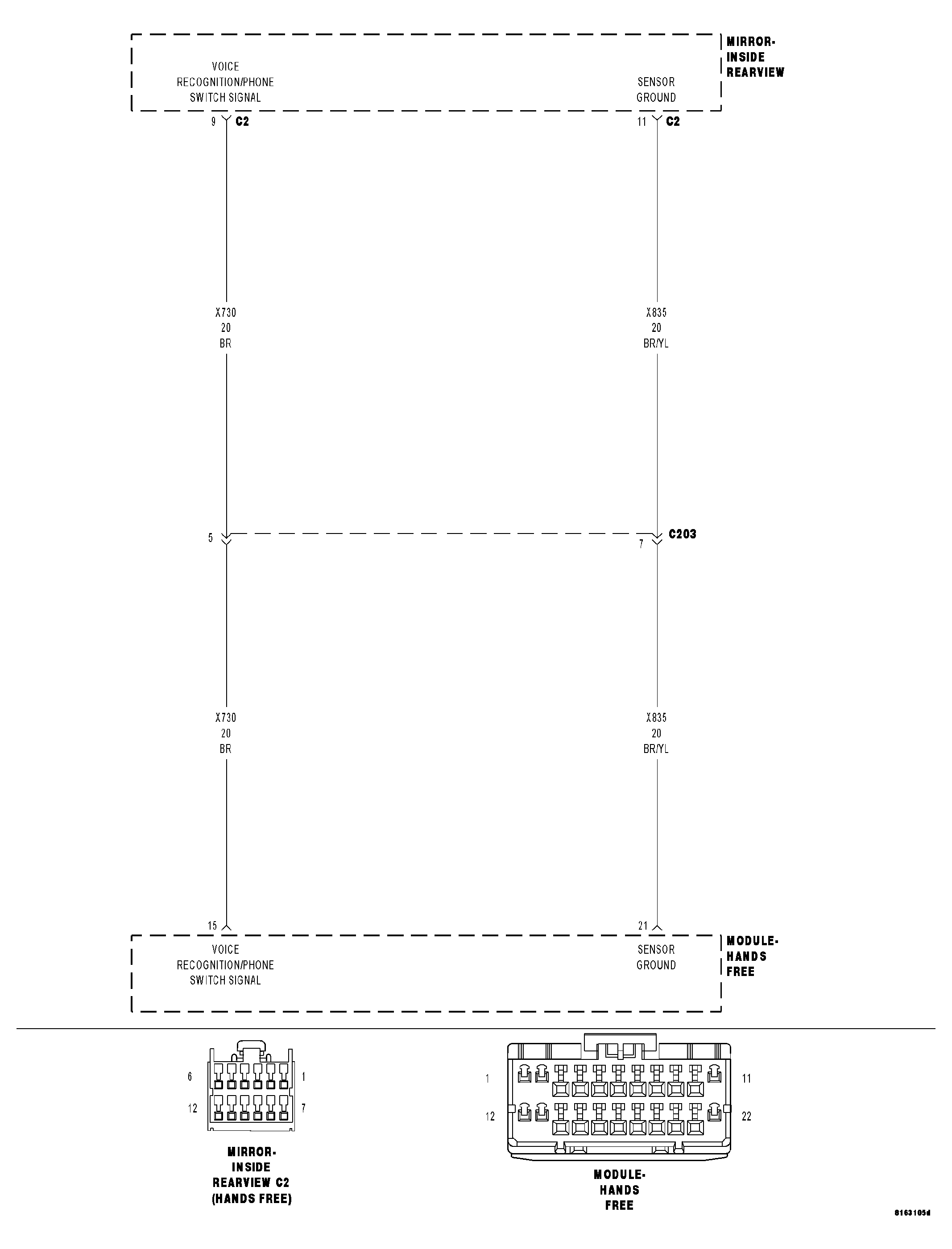

Fig 1: Voice Recognition/Phone Switch Input Circuit Schematic
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
