Front Wiper And Washer System: Notes
The front wiper and washer system is designed to provide the vehicle operator with a convenient, safe, and reliable means of maintaining visibility through the windshield glass. The various components of this system are designed to convert electrical energy produced by the vehicle electrical system into the mechanical action of the wiper blades to wipe the outside surface of the glass, as well as into the hydraulic action of the washer system to apply washer fluid stored in an on-board reservoir to the area of the glass to be wiped. When combined, these components provide the means to effectively maintain clear visibility for the vehicle operator by removing excess accumulations of rain, snow, bugs, mud, or other minor debris from the outside windshield glass surface that might be encountered while driving the vehicle under numerous types of inclement operating conditions.

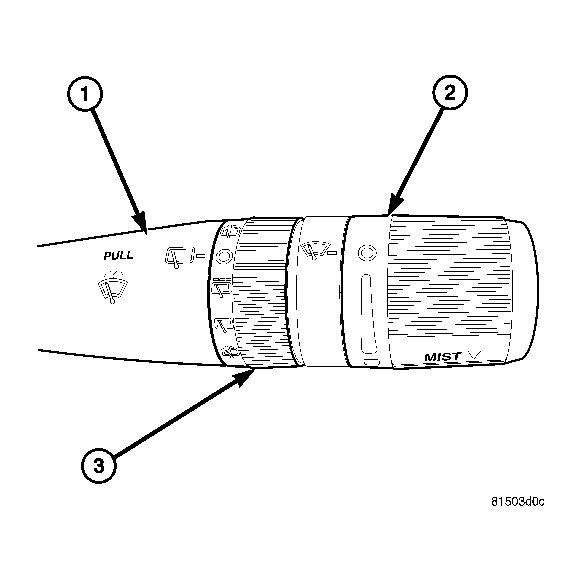

The vehicle operator initiates all front and rear wiper and washer system functions with the control stalk of the right (wiper) multi-function switch (1) that extends from the right side of the steering column, just below the steering wheel. Rotating the control knob (2) on the end of the control stalk, selects the OFF, DELAY, LOW, or HIGH front wiper system operating modes. In the DELAY mode, the control knob also allows the vehicle operator to select from one of five intermittent wipe delay intervals. In vehicles equipped with the optional automatic wiper system, the DELAY position of the control knob selects the automatic wiper mode, while the five intermittent wipe delay interval positions of the control knob allow the vehicle operator to select from one of five automatic wiper sensitivity levels.
Pulling the control stalk rearward actuates the momentary front washer system switch, which selects the WASH and WIPE-AFTER-WASH modes, depending upon when and how long the switch is held closed. The multi-function switch provides hard wired resistor multiplexed inputs to the Steering Control Module (SCM) for all of the wiper and washer system functions. The SCM then sends electronic messages to the Front Control Module (FCM) over the Controller Area Network (CAN) data bus requesting the appropriate front wiper and washer system operating modes.
Front wiper and washer system operation is completely controlled by the SCM and FCM logic circuits, and that logic will only allow these systems to operate when the ignition switch is in the ACCESSORY or ON positions. Battery current is directed from a fuse in the Power Distribution Center (PDC) and a circuit breaker in the Junction Block (JB) to the wiper on/off and high/low relays in the Integrated Power Module (IPM) through a fused B(+) circuit. The FCM uses low side drivers to control wiper system operation by energizing or de-energizing the wiper high/low and wiper on/off relays. The FCM uses an H-bridge circuit to control the operation of the washer pump/motor unit. The right multi-function switch circuitry receives a clean ground output from the SCM on a multi-function switch return circuit, then provides resistor multiplexed inputs to the SCM to indicate the selected front wiper system and front washer system mode.
The hard wired circuits and components of the front wiper and washer system may be diagnosed using conventional diagnostic tools and procedures. Refer to SYSTEM WIRING DIAGRAMS article. However, conventional diagnostic methods will not prove conclusive in the diagnosis of the front wiper and washer system or the electronic controls or communication between other modules and devices that provide some features of the front wiper and washer system. The most reliable, efficient, and accurate means to diagnose the front wiper and washer system or the electronic controls and communication related to front wiper and washer system operation requires the use of a diagnostic scan tool. Refer to the appropriate diagnostic information.
