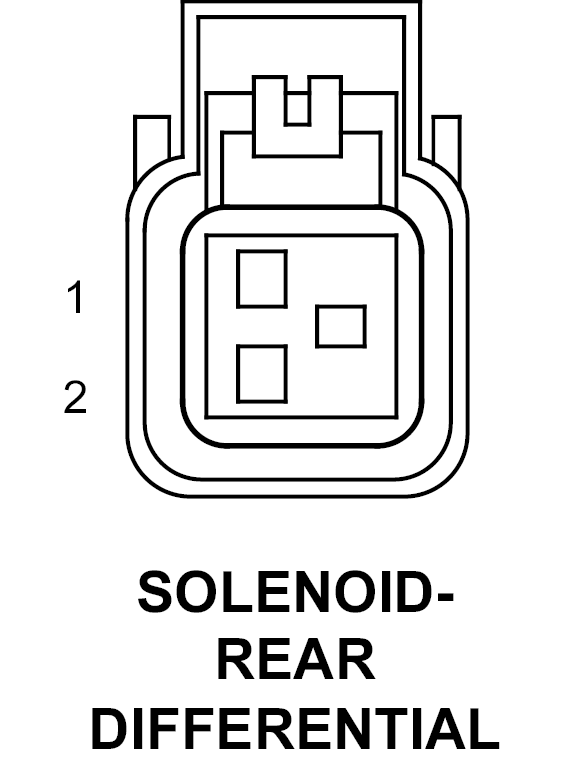

Rear Differential Solenoid Connector End View
SOLENOID-REAR DIFFERENTIAL - 2-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
T301 18DG/YL |
SWITCHED BATTERY SOLENOID SUPPLY |
| 2 |
T312 18YL/VT |
REAR DIFFERENTIAL SOLENOID CONTROL |
