Starter (Diesel) Connector End View

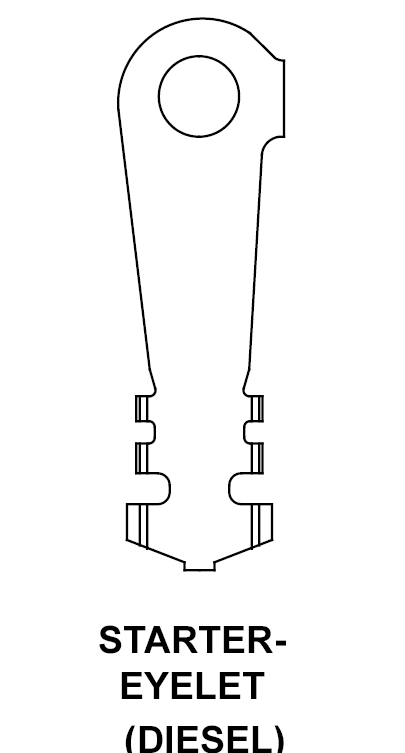

STARTER-EYELET - 1-WAY(DIESEL)

GXK780409Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 A8 4RD B(+)
1 A11 8BR/RD FUSED B(+)
